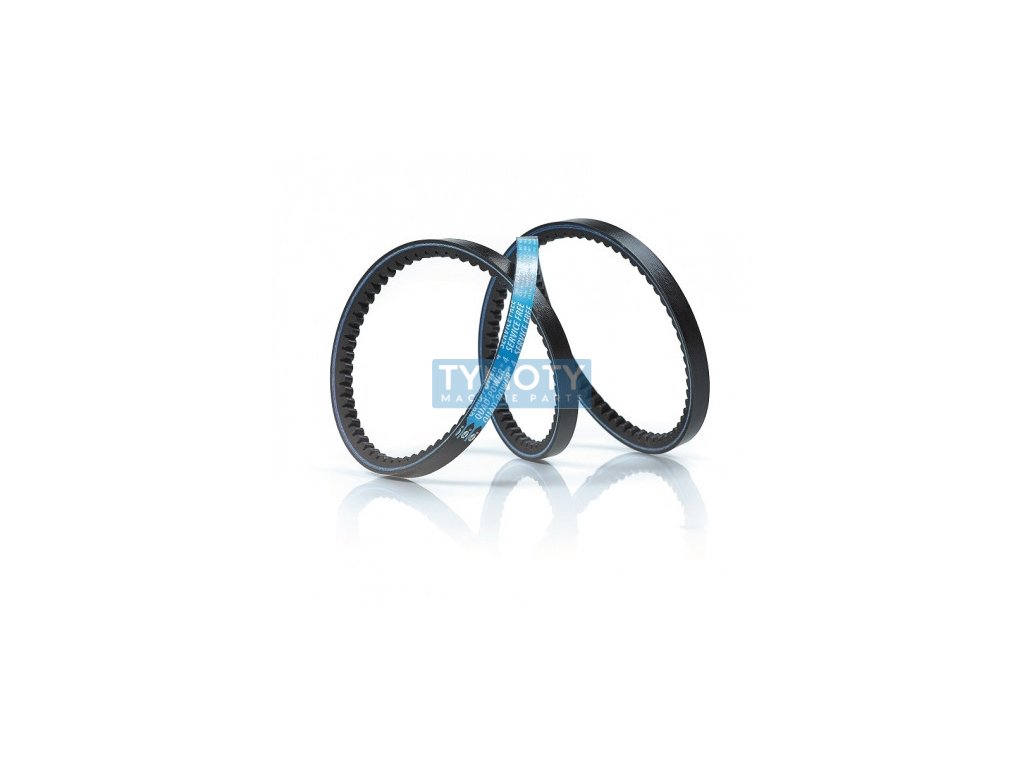

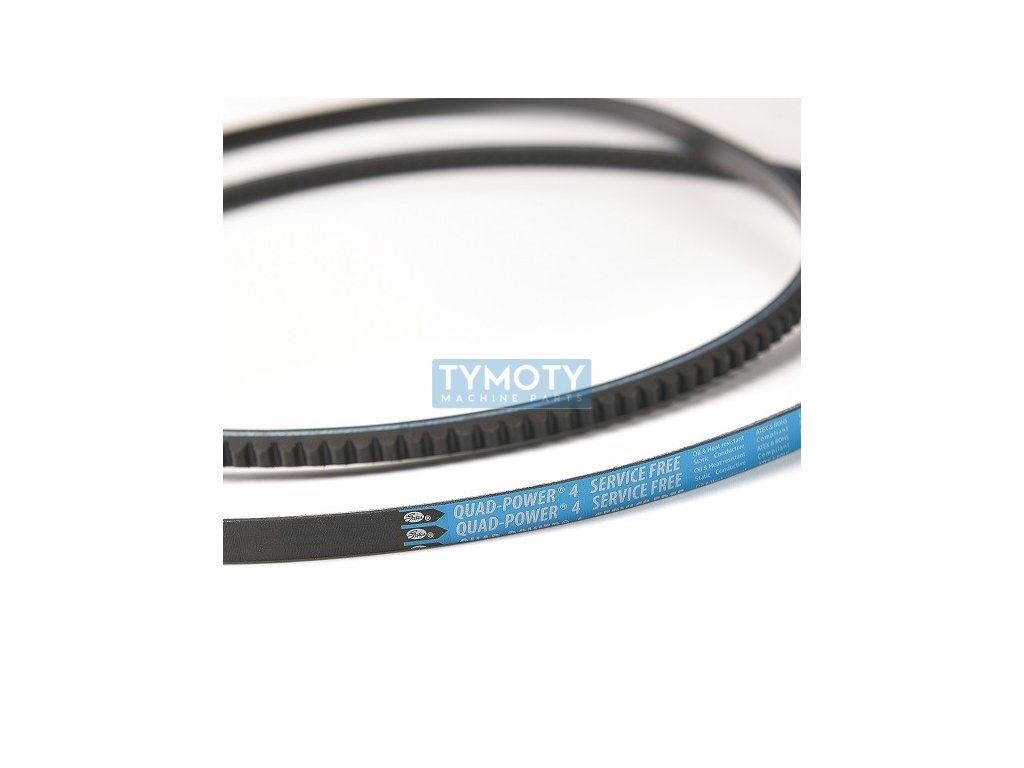

V-belt XPZ 1650 Lw (3VX 650) Gates Quad-Power 4

Product detailed description

The Gates Quad-Power 4 XPZ 1650 Lw (3VX 650) V-belt is specially designed for high-performance applications where reliability and long service life are required. This belt belongs to the QUAD-POWER4 series and is manufactured by the renowned manufacturer GATES, known for its quality and innovation in the field of power transmission.

The belt has an XPZ profile, which means it is narrow and cut, with precise dimensions: width 9.7 mm and height 8 mm. These dimensions are optimized for efficient power transmission while maintaining compact dimensions. The calculated length of the belt is 1650 mm, the inner length is 1612 mm and the outer length is 1663 mm, which allows it to be used in various applications where the exact length is required for correct tension and functionality.

The belt material is EPDM (ethylene propylene diene monomer), which provides excellent resistance to temperature extremes, chemicals and ozone. This material allows the belt to operate in a temperature range from -50 °C to 130 °C, which makes it suitable for use in harsh environments. The cord type is PES (polyester), which ensures high strength and resistance to stretching, thus increasing the overall life of the belt.

The belt is constructed according to DIN 7753/1 and ISO 4184 standards, which guarantees its compatibility and reliability in international applications. The profile angle is 36°, which is the standard angle for this type of belt, ensuring optimal contact with the pulleys and efficient torque transmission.

The Gates Quad-Power 4 XPZ 1650 Lw (3VX 650) V-belt is ideal for use in industrial equipment where reliable and efficient power transmission is required. Its design features and materials used guarantee long-term operation without the need for frequent replacements, which reduces maintenance costs and increases productivity.
