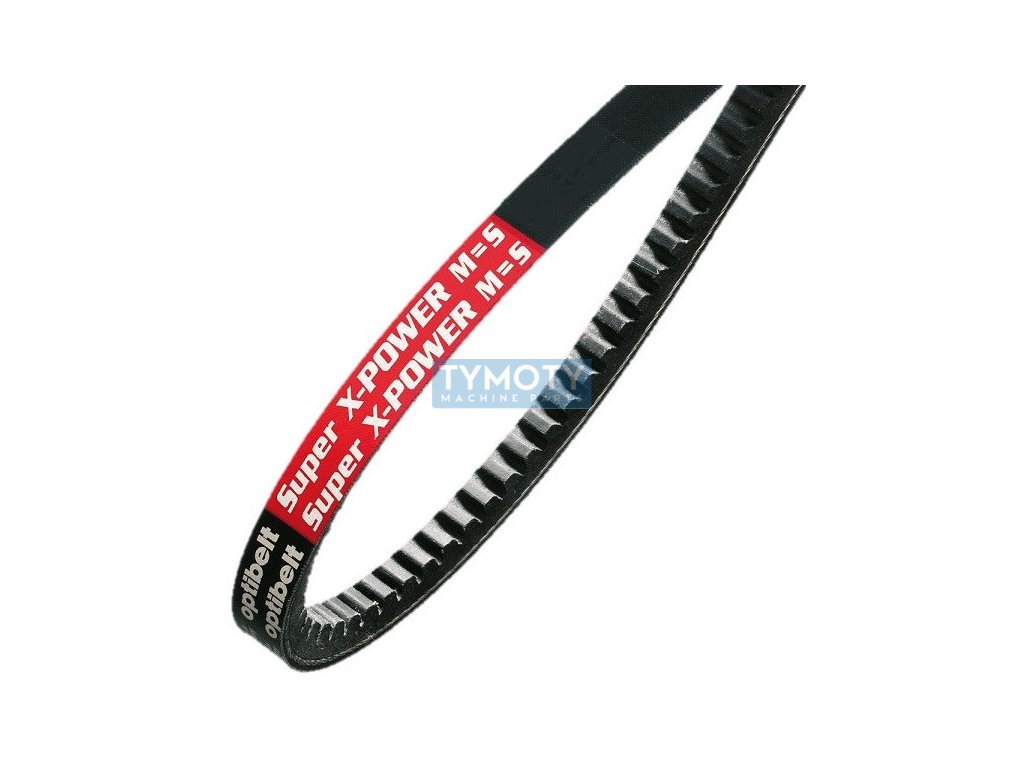

V-belt XPZ 1500 Lw optibelt Super X-POWER
Code: 246777
Product detailed description
V-belt XPZ 1500 Lw - (9.7x1513 La) is a narrow cut V-belt, with or without teeth. It is manufactured by optibelt under the trade name Super X-POWER. The belt has excellent performance and long service life. Minimal operating elongation. Suitable for small pulley diameters. Reinforced construction allows for higher power transmission - up to 30% more than with conventional V-belts. The M=S production system guarantees strict length tolerances for use in a set on one pulley. Temperature resistance from -45 to +80 C. Increased resistance to abrasion and mineral oils. The V-belt XPZ 1500 Lw has an internal length Li 1462 and an external length La is 1513 mm. The belt width is 9.7 and the height is 8 mm.Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPZ (9.7x8) |
|---|---|
| Weight: | 0.114 kg |
| EAN: | 4014486260298 |
| Calculation length Lw, Lp, mm: | 1500 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1462 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 90 °C |
| Minimum diameter: | 56 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 1513 |
| Product: | V-belt narrow |
| Profile: | XPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 1609852 |
| Značení: | XPZ 1500 |
| Řada: | Super X-POWER |
| Typ: | řezaný |
