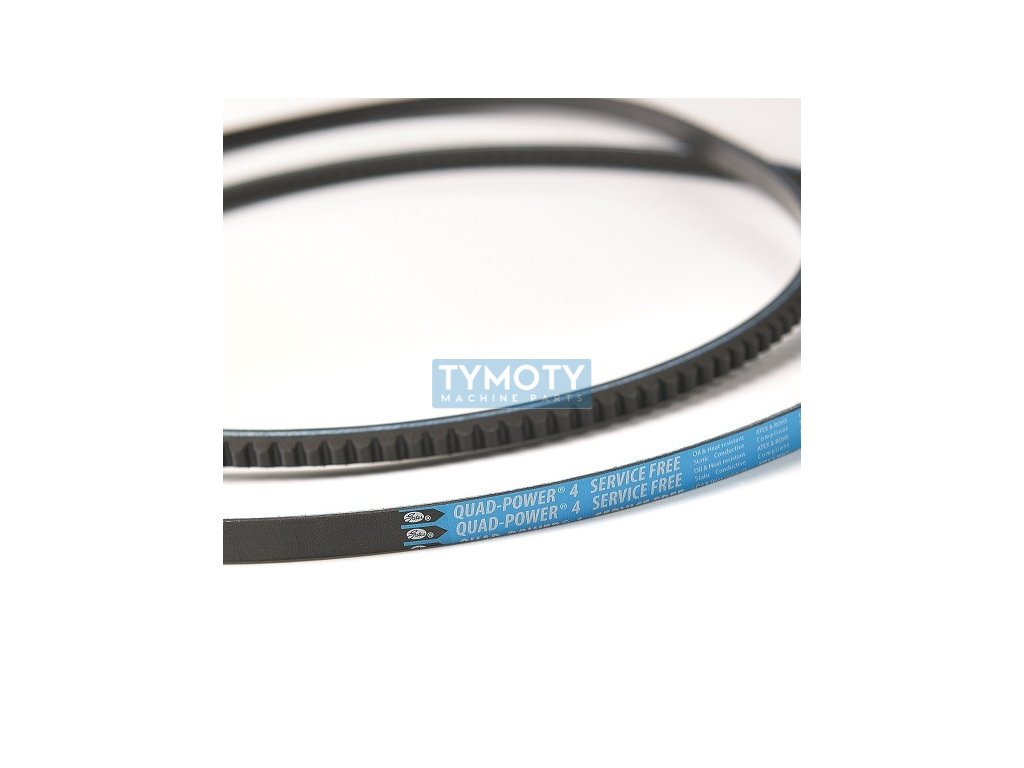

V-belt XPZ 1337 Lw (3VX 530) Gates Quad-Power 4
Code: 541996
Product detailed description
The Gates Quad-Power 4 XPZ 1337 Lw (3VX 530) V-belt is specially designed for high-performance applications where reliability and long service life are required. This belt belongs to the QUAD-POWER4 series, which is known for its ability to transmit higher power with a smaller cross-section, which allows for more efficient use of space and a reduction in the weight of the entire system.The V-belt has an XPZ profile, which means it is narrow and cut, with precise dimensions: width 9.7 mm and height 8 mm. Its calculated length Lw is 1337 mm, the internal length Li is 1299 mm and the external length La reaches 1350 mm. These dimensions comply with DIN 7753/1 and ISO 4184 standards, ensuring compatibility with various industrial equipment.
The material used to manufacture this belt is EPDM (ethylene propylene diene monomer), which provides excellent resistance to temperature extremes, chemicals and ozone. This material allows the belt to operate in a temperature range from -50 °C to 130 °C, making it suitable for a wide range of applications in various climatic conditions.
The belt is equipped with a polyester cord (PES), which ensures high strength and stability in power transmission. The wedge angle is 36°, which optimizes the contact between the belt and the pulley, thereby increasing the efficiency of power transmission and reducing wear.
The manufacturer of this belt is the renowned company Gates, which is known for its innovative solutions in the field of power transmission. The product with manufacturer number 9643-01337 is ideal for use in industrial applications where high reliability and efficiency are required.
Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPZ (9.7x8) |
|---|---|
| Weight: | 0.077 kg |
| EAN: | 5414465968723 |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 1337 |
| Cord type: | PES |
| Country of origin: | FR |
| DIN standard: | 7753/1 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1299 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | EPDM |
| Maximum temperature °C: | 130 °C |
| Minimum temperature °C: | -50 °C |
| Outer length La (mm): | 1350 |
| Product: | V-belt narrow |
| Profile: | XPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 9643-01337 |
| Značení: | XPZ1337/3VX530 QUAD-POWER 4 |
| Řada: | QUAD-POWER4 |
| Typ: | řezaný |
