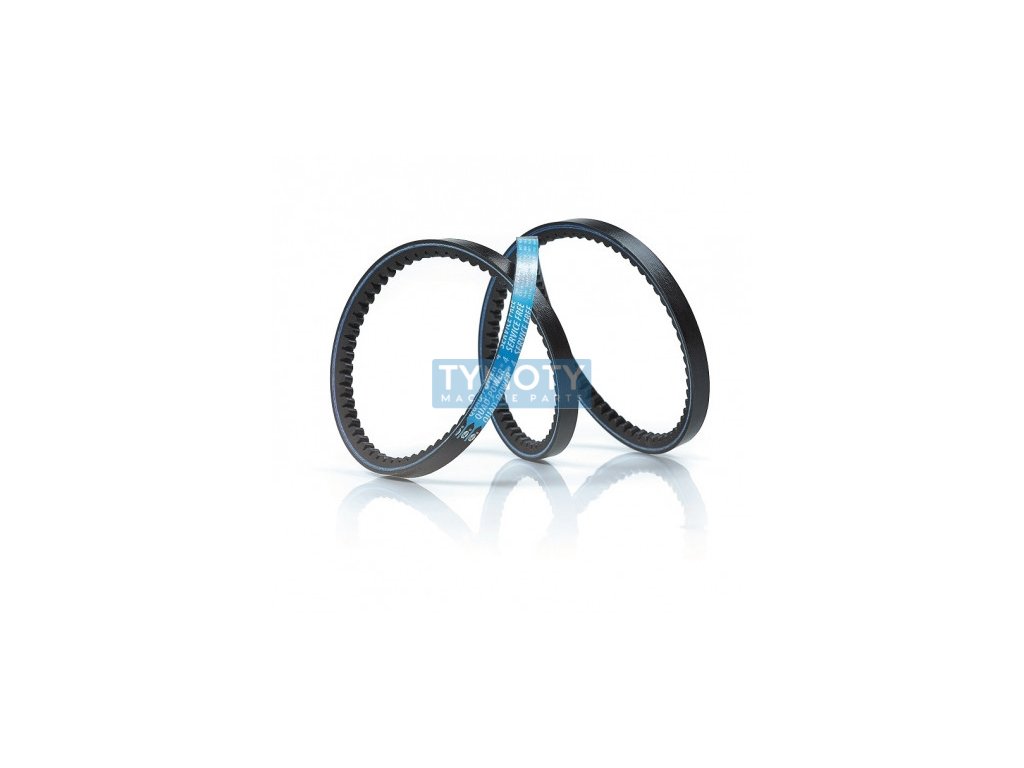

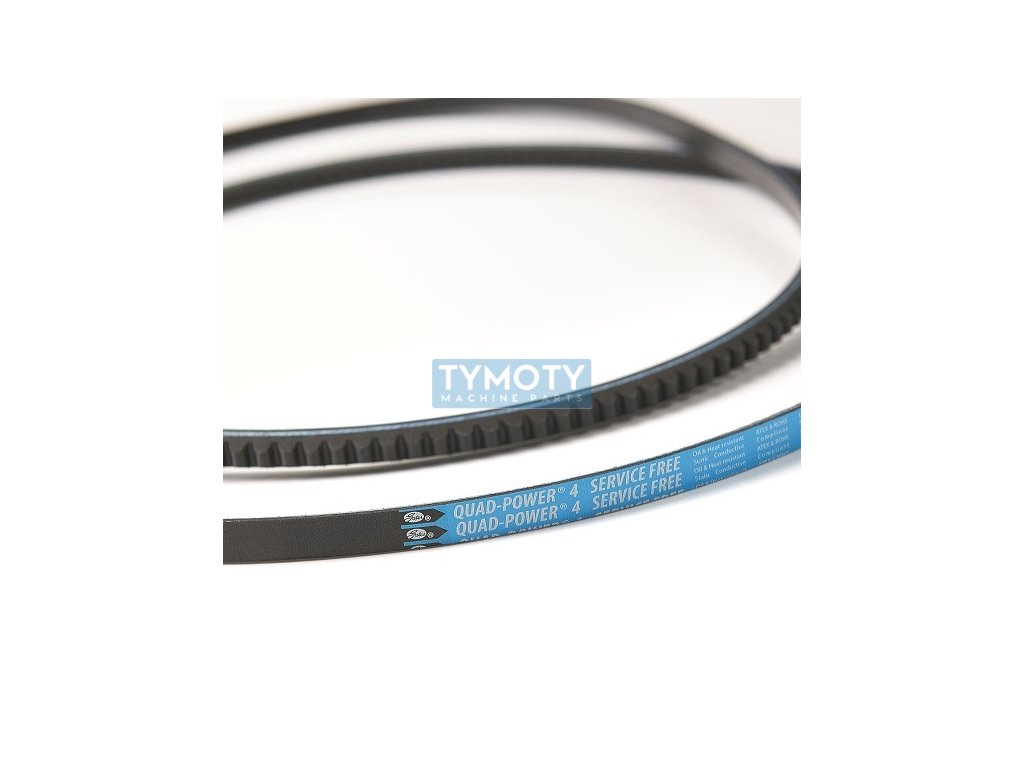

V-belt XPZ 1320 Lw (3VX 520) Gates Quad-Power 4
Code: 541995
Product detailed description
The Gates Quad-Power 4 XPZ 1320 Lw (3VX 520) V-belt is specially designed for high-performance applications where reliability and long service life are required. This belt belongs to the QUAD-POWER4 series, which is known for its ability to transmit higher power in smaller dimensions. The XPZ profile with an angle of 36° is optimized for efficient power transmission and minimizing friction losses.The belt has an inner length of 1282 mm, a calculated length of 1320 mm and an outer length of 1333 mm. The belt width is 9.7 mm and a height of 8 mm, which makes it a narrow V-belt. These dimensions comply with DIN 7753/1 and ISO 4184 standards, ensuring compatibility with a variety of industrial equipment.
The belt material is EPDM (ethylene propylene diene monomer), which provides excellent resistance to temperature fluctuations, chemicals and ozone. This material allows the belt to operate in a temperature range of -50 °C to 130 °C, which is ideal for applications in harsh conditions.
The belt cord is made of polyester (PES), which guarantees high tensile strength and resistance to fatigue fractures. This ensures long-term reliability and stability of the belt's performance.
The manufacturer Gates is renowned in the field of belt manufacturing and their product number for this particular model is 9643-01320. This V-belt is ideal for use in industrial drives where high efficiency and low maintenance are required.
Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPZ (9.7x8) |
|---|---|
| Weight: | 0.076 kg |
| EAN: | 5414465968716 |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 1320 |
| Cord type: | PES |
| Country of origin: | FR |
| DIN standard: | 7753/1 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1282 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | EPDM |
| Maximum temperature °C: | 130 °C |
| Minimum temperature °C: | -50 °C |
| Outer length La (mm): | 1333 |
| Product: | V-belt narrow |
| Profile: | XPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 9643-01320 |
| Značení: | XPZ1320/3VX520 QUAD-POWER 4 |
| Řada: | QUAD-POWER4 |
| Typ: | řezaný |
