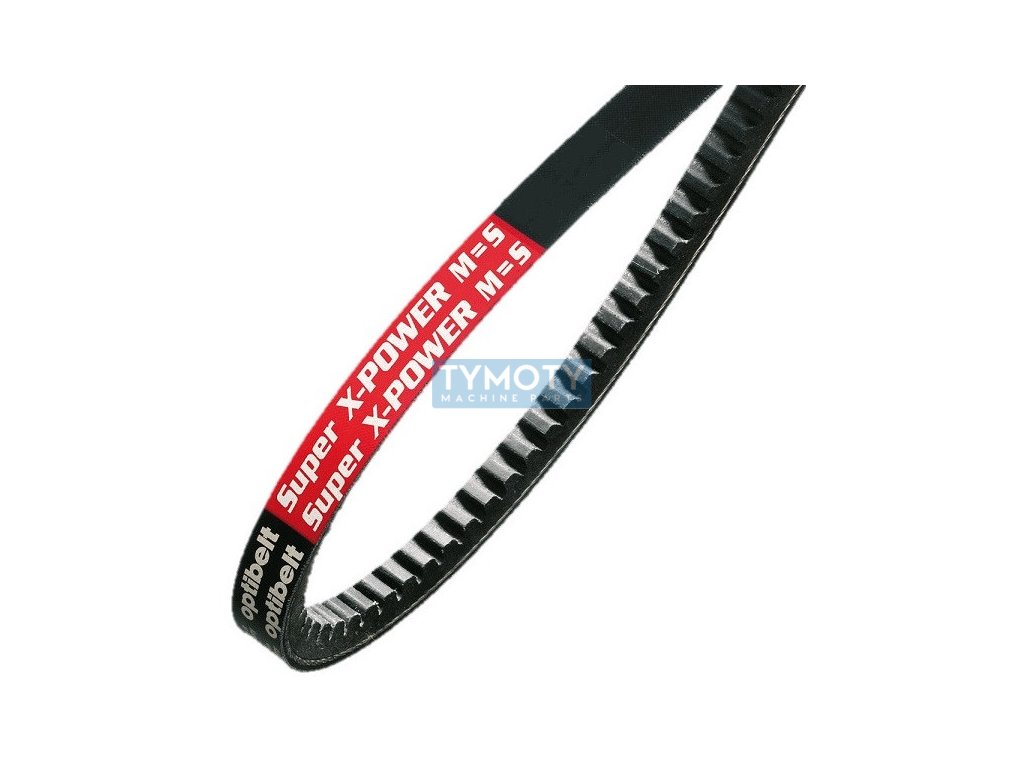

V-belt XPC 3000 Lw optibelt Super X-POWER
Code: 246917
Product detailed description
V-belt XPC 3000 Lw - (22x3030 La) is a narrow cut V-belt, with or without teeth. It is manufactured by optibelt under the trade name Super X-POWER. The belt has excellent performance and long service life. Minimal operating elongation. Suitable for small pulley diameters. Reinforced construction allows for higher power transmission - up to 30% more than with conventional V-belts. The M=S production system guarantees strict length tolerances for use in a set on one pulley. Temperature resistance from -45 to +80 C. Increased resistance to abrasion and mineral oils. The V-belt XPC 3000 Lw has an inner length Li 2917 and an outer length La is 3030 mm. The belt width is 22 and the height is 18 mm.Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPC (22x18) |
|---|---|
| Weight: | 0.975 kg |
| EAN: | 4014486259681 |
| Calculation length Lw, Lp, mm: | 3000 |
| Height H (mm): | 18 |
| Inner length Li (mm): | 2940 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 80 °C |
| Minimum diameter: | 180 |
| Minimum temperature °C: | -45 °C |
| Outer length La (mm): | 3030 |
| Product: | V-belt narrow |
| Profile: | XPC |
| Width B (mm): | 22 |
| Číslo výrobce: | 1768867 |
| Značení: | XPC 3000 |
| Řada: | Super X-POWER |
| Typ: | řezaný |
