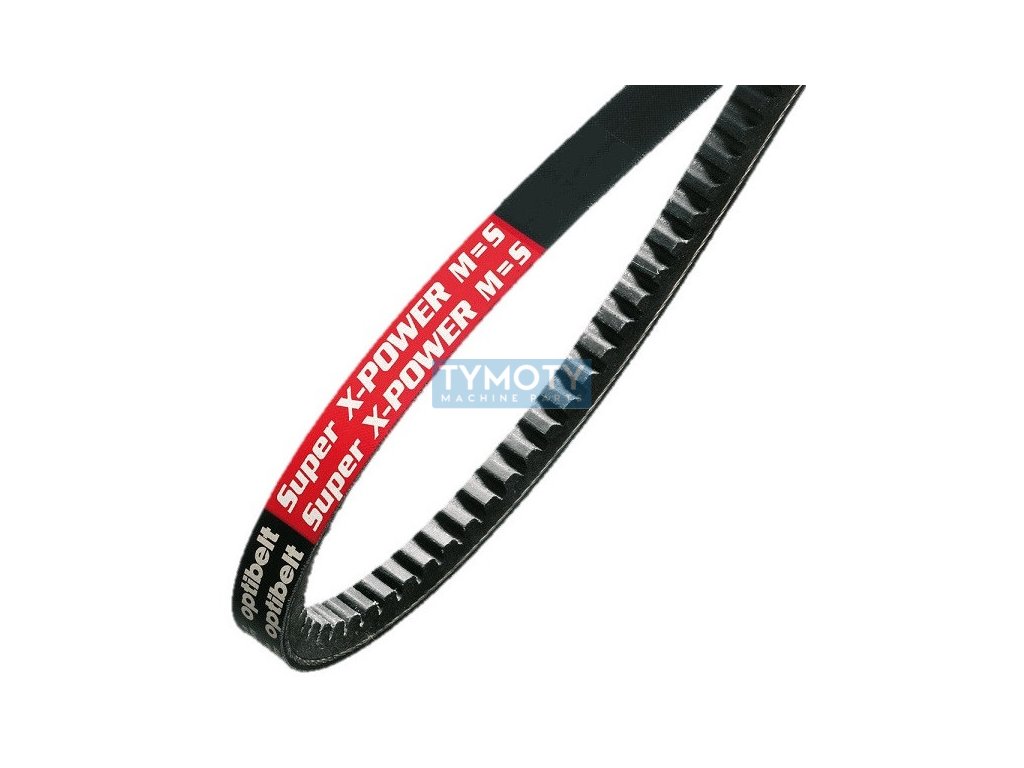

V-belt XPB 2400 Lw (5VX 950) optibelt Super X-POWER
Code: 246900
Product detailed description
V-belt XPB 2400 Lw - (16.3x2422 La) is a narrow cut V-belt, with or without teeth. It is manufactured by optibelt under the trade name Super X-POWER. The belt has excellent performance and long service life. Minimal operating elongation. Suitable for small pulley diameters. Reinforced construction allows for higher power transmission - up to 30% more than with conventional V-belts. The M=S production system guarantees strict length tolerances for use in a set on one pulley. Temperature resistance from -45 to +80 C. Increased resistance to abrasion and mineral oils. The V-belt XPB 2400 Lw has an inner length Li 2340 and an outer length La is 2422 mm. The belt width is 16.3 and the height is 13 mm.Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPB (16.3x13) |
|---|---|
| Weight: | 0.461 kg |
| EAN: | 4014486259513 |
| Calculation length Lw, Lp, mm: | 2400 |
| Height H (mm): | 13 |
| Inner length Li (mm): | 2340 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 90 °C |
| Minimum diameter: | 112 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 2422 |
| Product: | V-belt narrow |
| Profile: | XPB |
| Width B (mm): | 16,3 |
| Číslo výrobce: | 1797816 |
| Značení: | XPB 2400 |
| Řada: | Super X-POWER |
| Typ: | řezaný |
