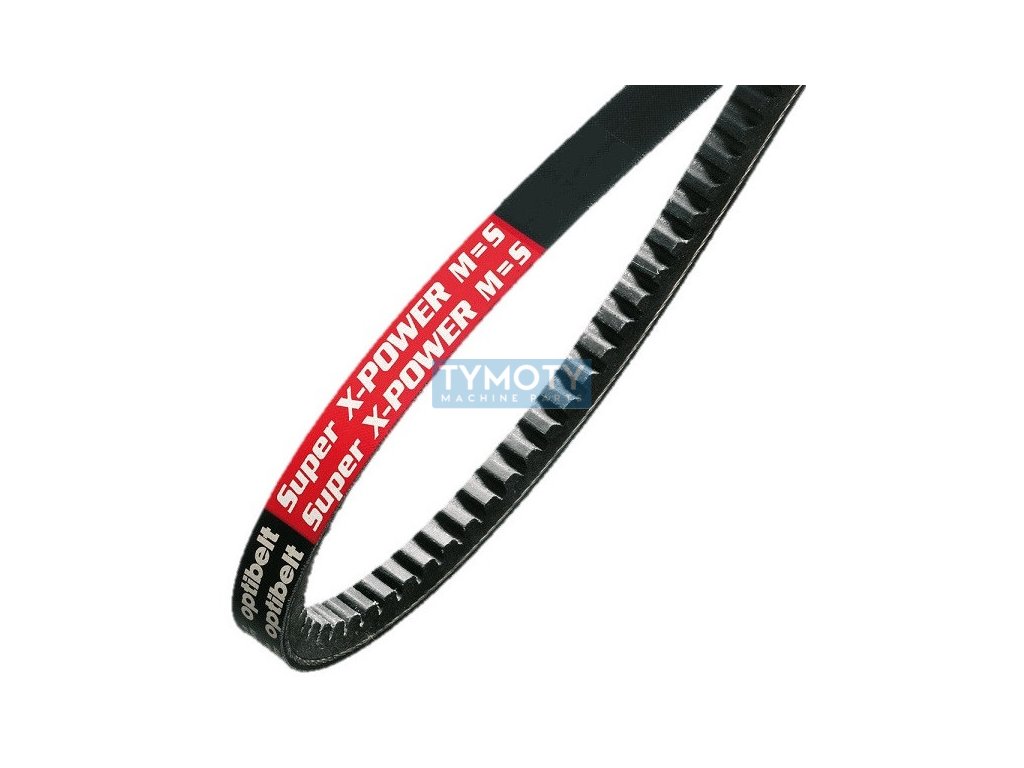

V-belt XPA 2120 Lw optibelt Super X-POWER
Code: 246873
Product detailed description
V-belt XPA 2120 Lw - (12.7x2138 La) is a narrow cut V-belt, with or without teeth. It is manufactured by optibelt under the trade name Super X-POWER. The belt has excellent performance and long service life. Minimal operating elongation. Suitable for small pulley diameters. Reinforced construction allows for higher power transmission - up to 30% more than with conventional V-belts. The M=S production system guarantees strict length tolerances for use in a set on one pulley. Temperature resistance from -45 to +80 C. Increased resistance to abrasion and mineral oils. The V-belt XPA 2120 Lw has an inner length Li 2075 and an outer length La is 2138 mm. The belt width is 12.7 and the height is 10 mm.Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPA (12.7x10) |
|---|---|
| Weight: | 0.204 kg |
| EAN: | 4014486259254 |
| Calculation length Lw, Lp, mm: | 2120 |
| Height H (mm): | 10 |
| Inner length Li (mm): | 2075 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 90 °C |
| Minimum diameter: | 71 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 2138 |
| Product: | V-belt narrow |
| Profile: | XPA |
| Width B (mm): | 12,7 |
| Číslo výrobce: | 1741686 |
| Značení: | XPA 2120 |
| Řada: | Super X-POWER |
| Typ: | řezaný |
