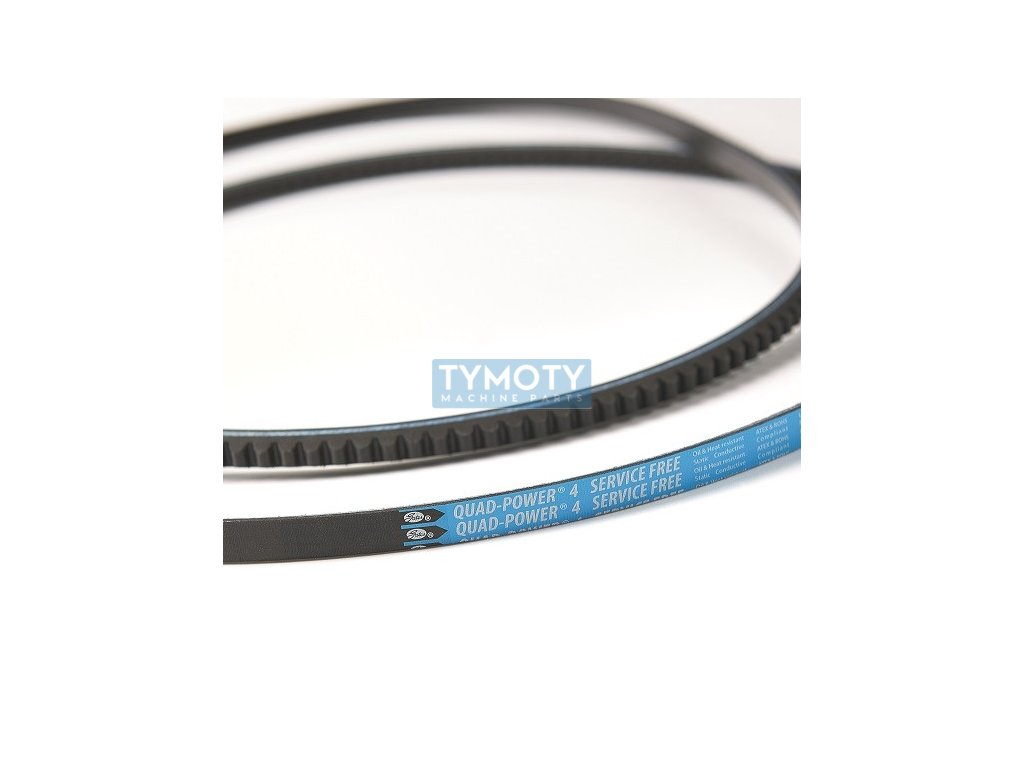

V-belt XPA 1600 Lw Gates Quad-Power 4

Product detailed description

The Gates Quad-Power 4 XPA 1600 Lw V-belt is specially designed for high-performance applications where reliability and durability are required. This belt belongs to the QUAD-POWER4 series, which is known for its high efficiency and long service life. The belt is made of EPDM (ethylene propylene diene monomer) material, which provides excellent resistance to temperature extremes, with a working range from -50 °C to 130 °C. This material also ensures high resistance to ozone, chemicals and wear.

With an XPA profile and a 36° angle, this V-belt is optimized for narrow grooves, which allows for efficient power transmission in smaller dimensions. Its design includes a cut type, which means that the belt has precisely defined dimensions and shape for maximum contact area with the pulleys, increasing traction and reducing slippage. The belt width is 12.7 mm, the height is 10 mm and the calculated length Lw is 1600 mm, which corresponds to DIN 7753/1 and ISO 4184 standards.

The inner length Li is 1555 mm and the outer length La is 1618 mm, which allows for precise adjustment in various mechanical systems. The type of cord used in this belt is PES (polyester), which provides high tensile strength and low elongation, which is key to maintaining stable performance throughout the life of the belt.

The manufacturer Gates, known for its quality and innovation in the field of power transmission, ensures that this V-belt is ideal for use in industrial and automotive applications where high reliability and efficiency are required. The product is marked with the manufacturer's number 9644-01600, which allows for easy identification and ordering.
