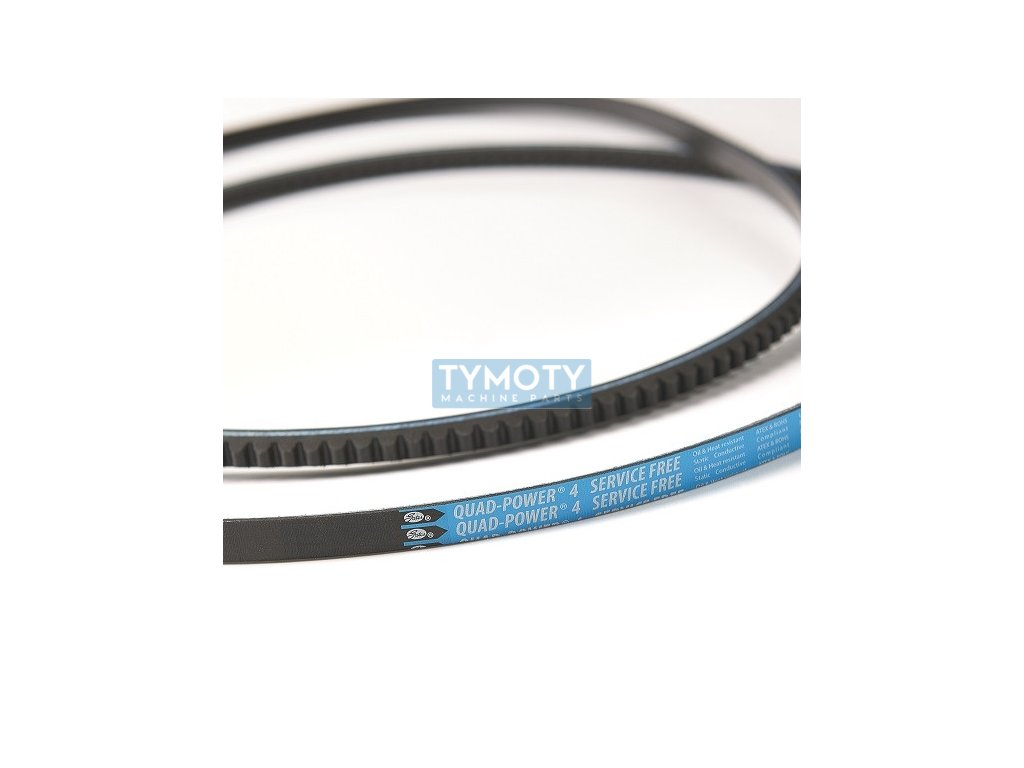

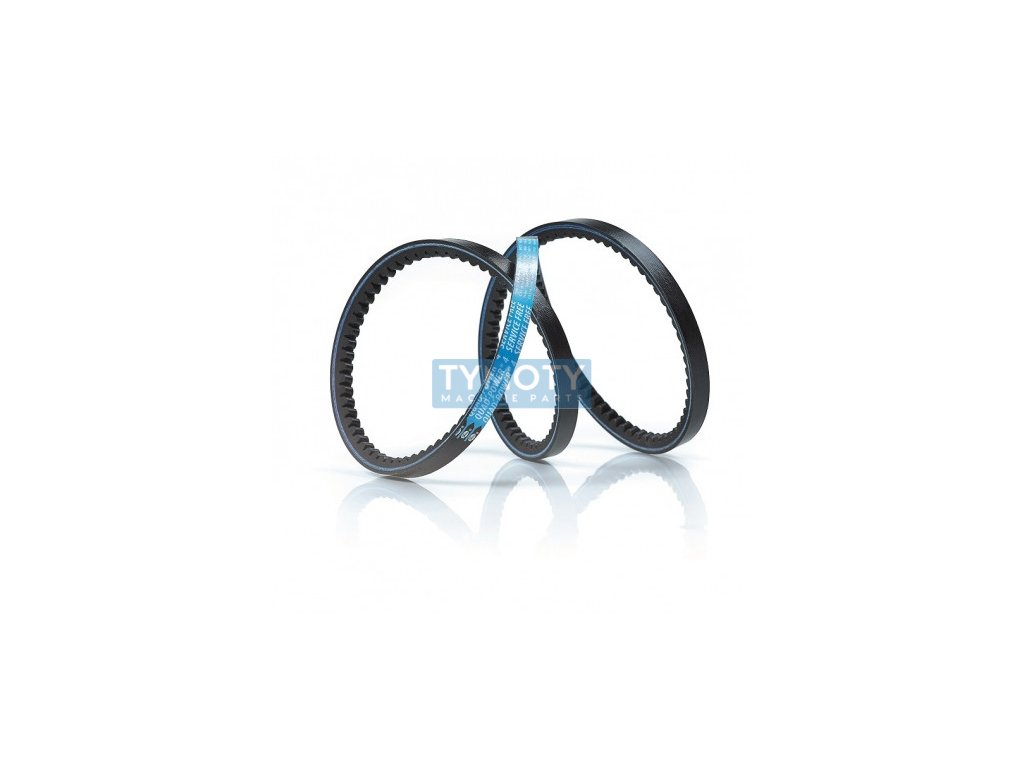

V-belt XPA 1250 Lw Gates Quad-Power 4

Product detailed description

The XPA 1250 Lw Gates Quad-Power 4 V-belt is specially designed for high-performance applications where reliability and long life are required. This belt belongs to the Quad-Power 4 series, which is known for its ability to transmit high power while maintaining compact dimensions. The belt is made of EPDM (ethylene propylene diene monomer) material, which provides excellent resistance to temperature extremes, with a working range from -50 °C to 130 °C. This material also guarantees high resistance to ozone, chemicals and wear.

The belt has an XPA profile, which means it is narrow and cut, with dimensions of 12.7 mm wide and 10 mm high. This profile is optimized for efficient power transmission and minimizing friction losses. The wedge angle is 36°, which contributes to better grip in the pulley grooves and increases the overall efficiency of the system.

The calculated belt length is 1250 mm, with an inner length (Li) of 1205 mm and an outer length (La) of 1268 mm. These dimensions comply with DIN 7753/1 and ISO 4184 standards, ensuring compatibility with a wide range of industrial applications.

The V-belt is equipped with a polyester (PES) cord, which provides high strength and flexibility, reducing the risk of breakage under dynamic loads. The manufacturer Gates, known for its quality and innovation in the field of power transmission, ensures that this belt is ideal for use in demanding conditions where high reliability and efficiency are required.
