V-belt XPA 1000 Lw ProfiPlus-X Rubena
Code: 242025
Product detailed description

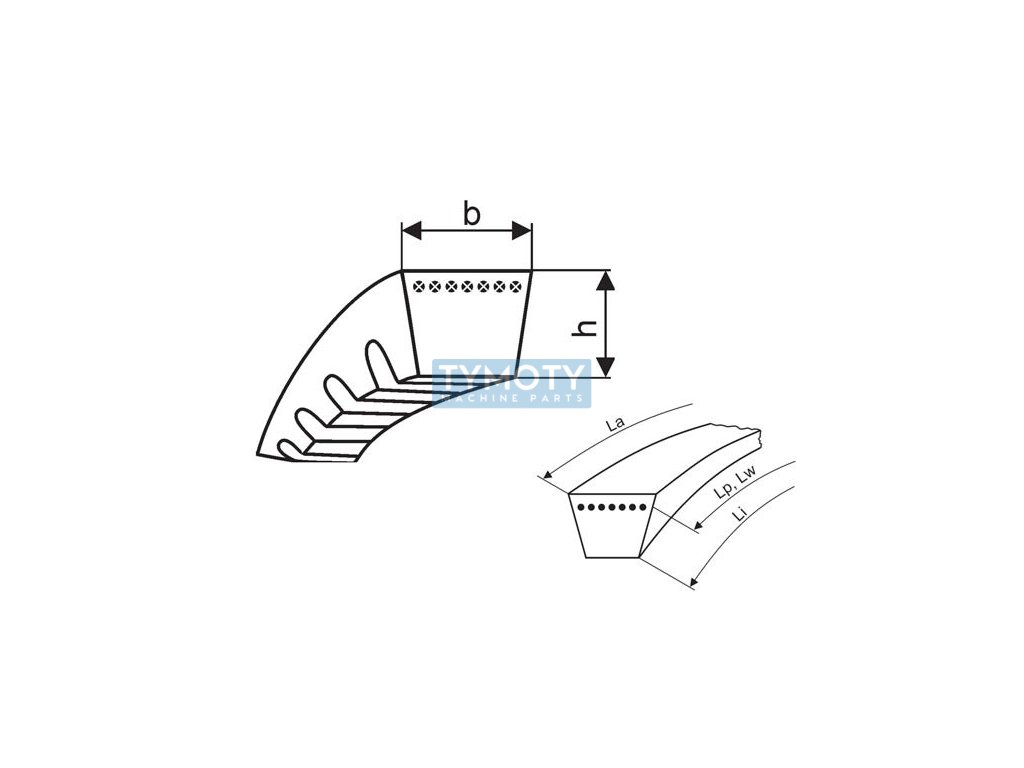

V-belt XPA 1000 Lw - (12.7x1018 La) is a narrow cut V-belt, with or without teeth. It is manufactured by Rubena under the trade name ProfiPlus-X. The belt has excellent performance and long service life. Minimal operating elongation. Suitable for small pulley diameters. Reinforced construction allows for higher power transmission - up to 30% more than with conventional V-belts. The M=S production system guarantees strict length tolerances for use in a set on one pulley. Temperature resistance from -45 to +80 C. Increased resistance to abrasion and mineral oils. The V-belt XPA 1000 Lw has an internal length Li 955 and an external length La is 1018 mm. The belt width is 12.7 and the height is 10 mm.Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPA (12.7x10) |
|---|---|
| Weight: | 0.12 kg |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 1000 |
| Cord type: | PES |
| DIN standard: | 7753/1 |
| Height H (mm): | 10 |
| Inner length Li (mm): | 955 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Rubena |
| Maximum temperature °C: | 80 °C |
| Minimum diameter: | 63 |
| Minimum temperature °C: | -45 °C |
| Outer length La (mm): | 1018 |
| Product: | V-belt narrow |
| Profile: | XPA |
| Width B (mm): | 13 |
| Řada: | ProfiPlus-X |
| Typ: | řezaný |
