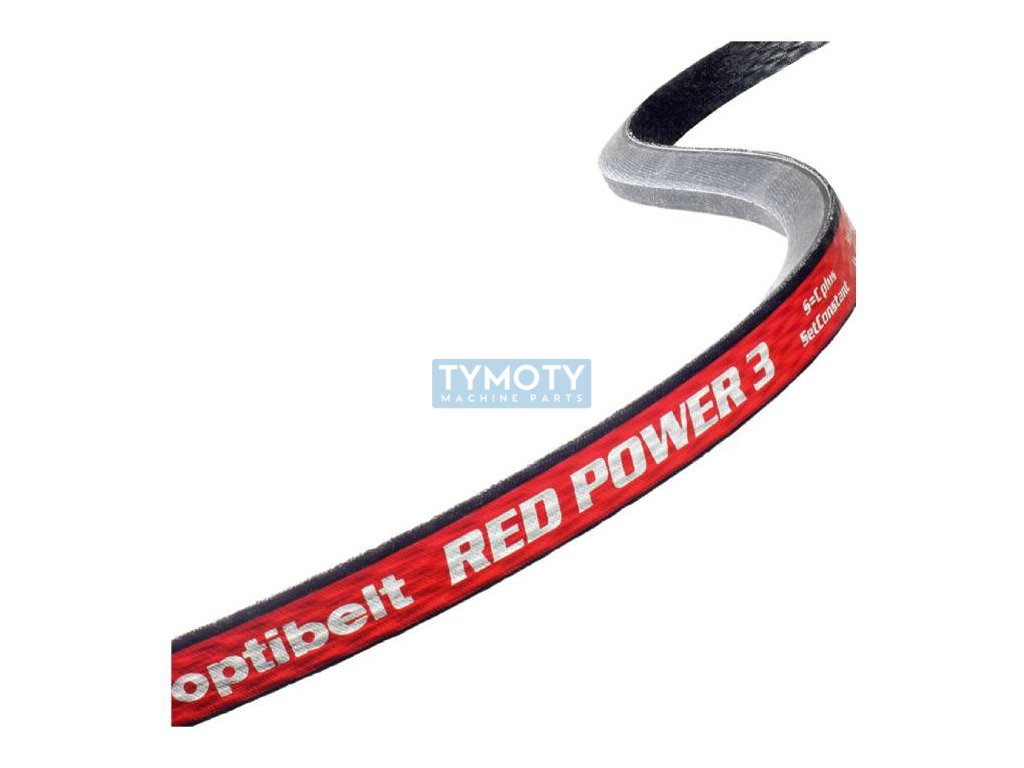

V-belt SPZ 1937 Lw optibelt RED POWER 3
Code: 241914
Product detailed description
SPZ 1937 Lw - (9.7x1950 La) is a coated, narrow V-belt. It is manufactured by optibelt under the trade name RED POWER 3. Length tolerances for use in a set on one pulley. Electrical conductivity is guaranteed according to ISO 1813. Temperature resistance from -30 to +60 C. The V-belt SPZ 1937 Lw has an internal length Li of 1899 and an external length La of 1950 mm.Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > license plate (9.7x8) |
|---|---|
| Weight: | 0.78 kg |
| EAN: | 4014486081138 |
| Calculation length Lw, Lp, mm: | 1937 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1899 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 60 °C |
| Minimum diameter: | 63 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 1950 |
| Product: | V-belt narrow |
| Profile: | SPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 1537802 |
| Značení: | SPZ 1937 RP |
| Řada: | RED POWER 3 |
| Typ: | obalovaný |
