V-belt SPZ 1687 Lw optibelt SK
Code: 246487
Product detailed description

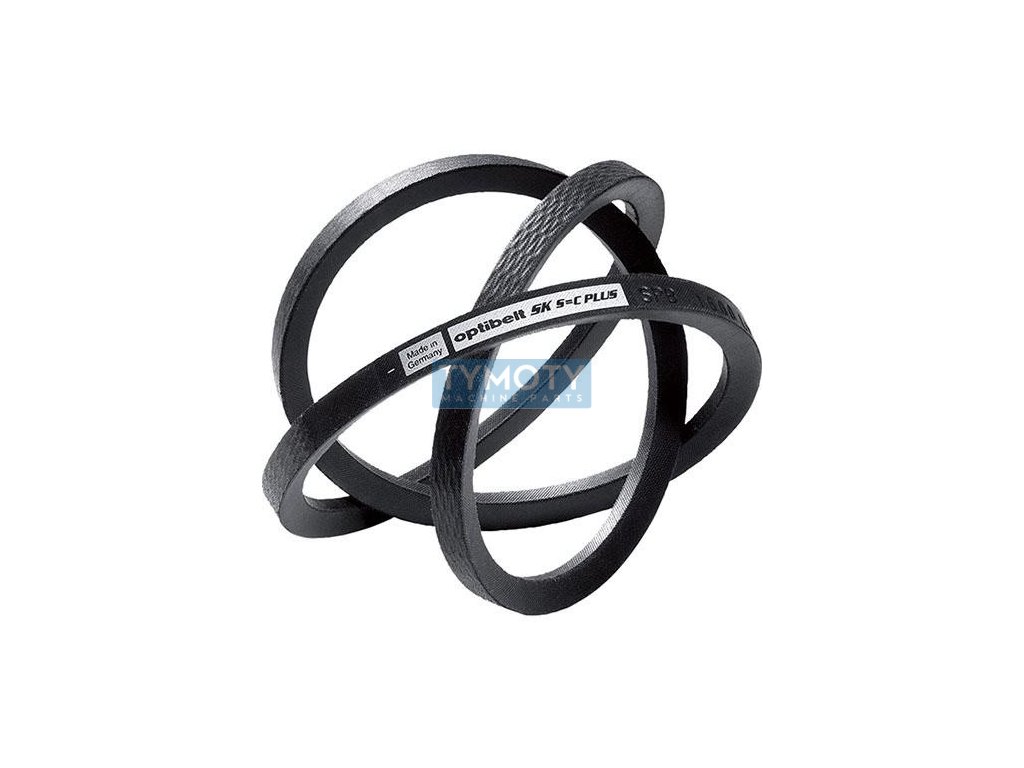

ŠPZ 1687 Lw - (9.7x1700 La) is a coated, narrow V-belt. It is manufactured by optibelt under the trade name SK. The belt has excellent performance and long service life. The reinforced construction allows for the transmission of higher power - up to 30% more than with conventional V-belts. The S=C (SetConstant) production system guarantees strict length tolerances for use in a set on one pulley. Electrical conductivity is guaranteed according to ISO 1813. Resistance to temperatures from -30 to +60 C. The ŠPZ 1687 Lw V-belt has an inner length Li 1649 and an outer length La is 1700 mm. The belt width is 9.7 and the height is 8.5 mm.Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > license plate (9.7x8) |
|---|---|
| Weight: | 0.605 kg |
| EAN: | 4014486080919 |
| Calculation length Lw, Lp, mm: | 1687 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1649 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 60 °C |
| Minimum diameter: | 63 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 1700 |
| Product: | V-belt narrow |
| Profile: | SPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 1728296 |
| Značení: | SPZ 1687 |
| Řada: | SK |
| Typ: | obalovaný |
