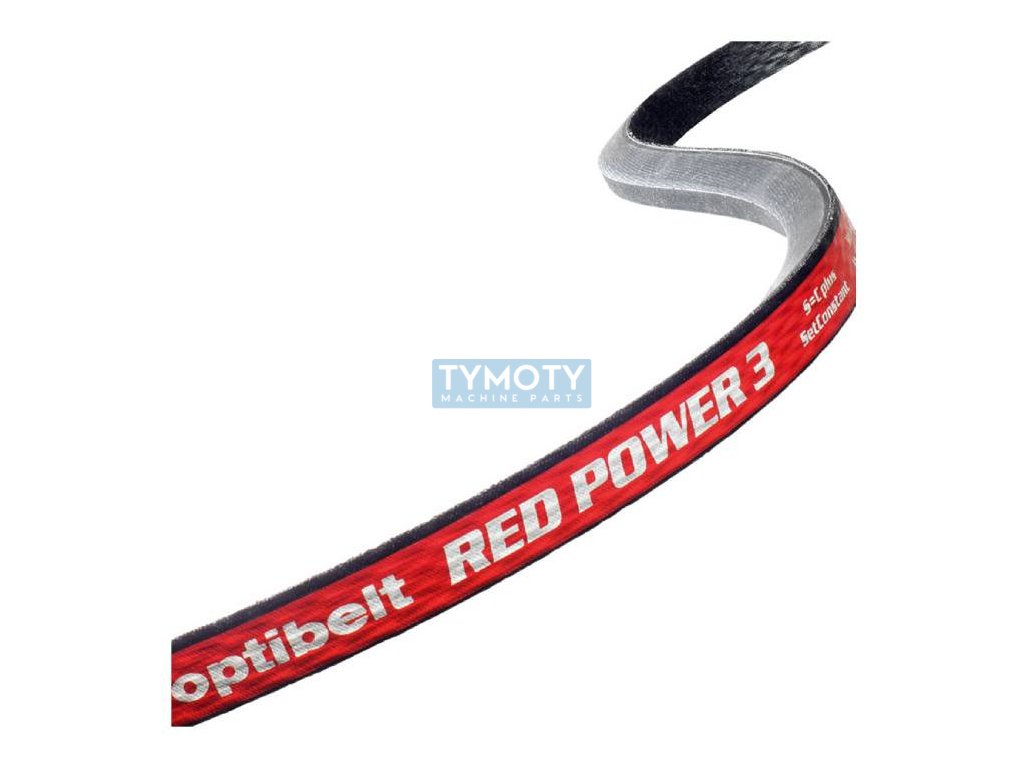

V-belt SPC 9000 Lw optibelt RED POWER 3
Code: 245416
Product detailed description
SPC 9000 Lw - (22x9030 La) is a coated, narrow V-belt. It is manufactured by optibelt under the trade name RED POWER 3. The belt has excellent performance and long service life. tolerance for use in a set on one pulley. Electrical conductivity is guaranteed according to ISO 1813. Temperature resistance from -30 to +60 C. The SPC 9000 Lw V-belt has an inner length Li 8917 and an outer length La is 9030 mm.Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > SPC (22x18) |
|---|---|
| Weight: | 13.788 kg |
| EAN: | 4014486079869 |
| Calculation length Lw, Lp, mm: | 9000 |
| Height H (mm): | 18 |
| Inner length Li (mm): | 8917 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 60 °C |
| Minimum diameter: | 224 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 9030 |
| Product: | V-belt narrow |
| Profile: | SPC |
| Width B (mm): | 22 |
| Číslo výrobce: | 1633376 |
| Značení: | SPC 9000 RP |
| Řada: | RED POWER 3 |
| Typ: | obalovaný |
