V-belt SPC 5200 Lw 22x5230 La L=L ProfiPlus Rubena

Product detailed description

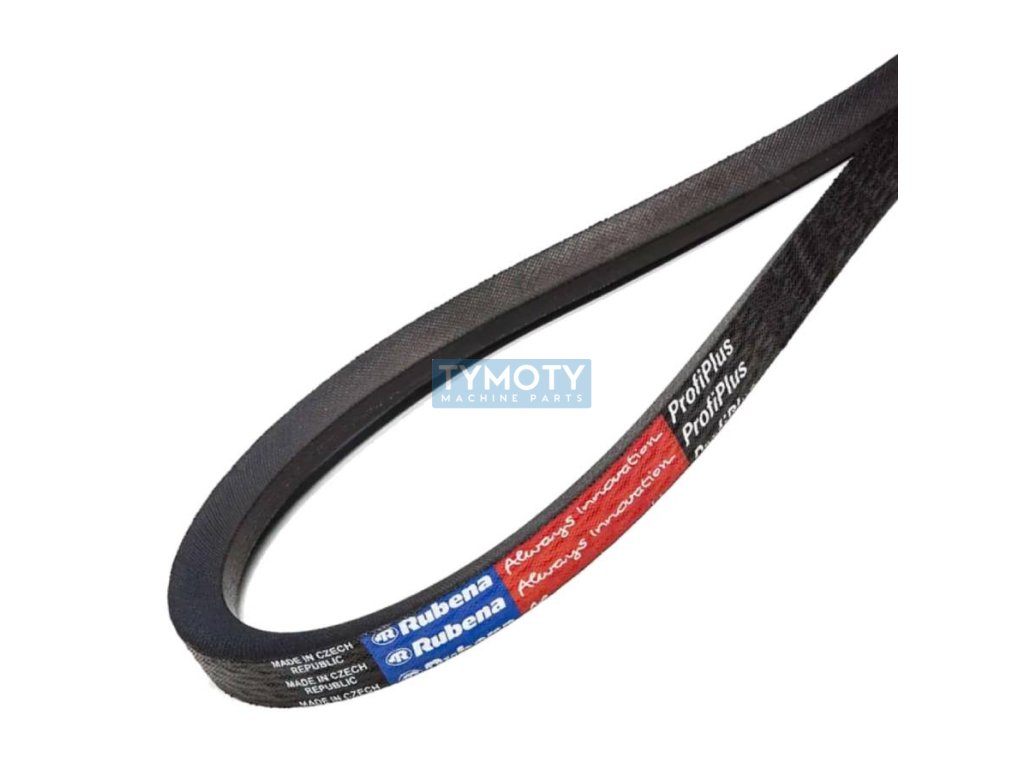

The SPC 5200 Lw 22x5230 La L=L ProfiPlus Rubena V-belt is a narrow-profile belt designed for the transmission of mechanical energy in industrial applications. This belt is manufactured by the RUBENA brand and meets the DIN 7753/1 and ISO 4184 standards, which guarantees its quality and reliability in operation. The SPC profile ensures high efficiency of power transmission while maintaining compact dimensions.

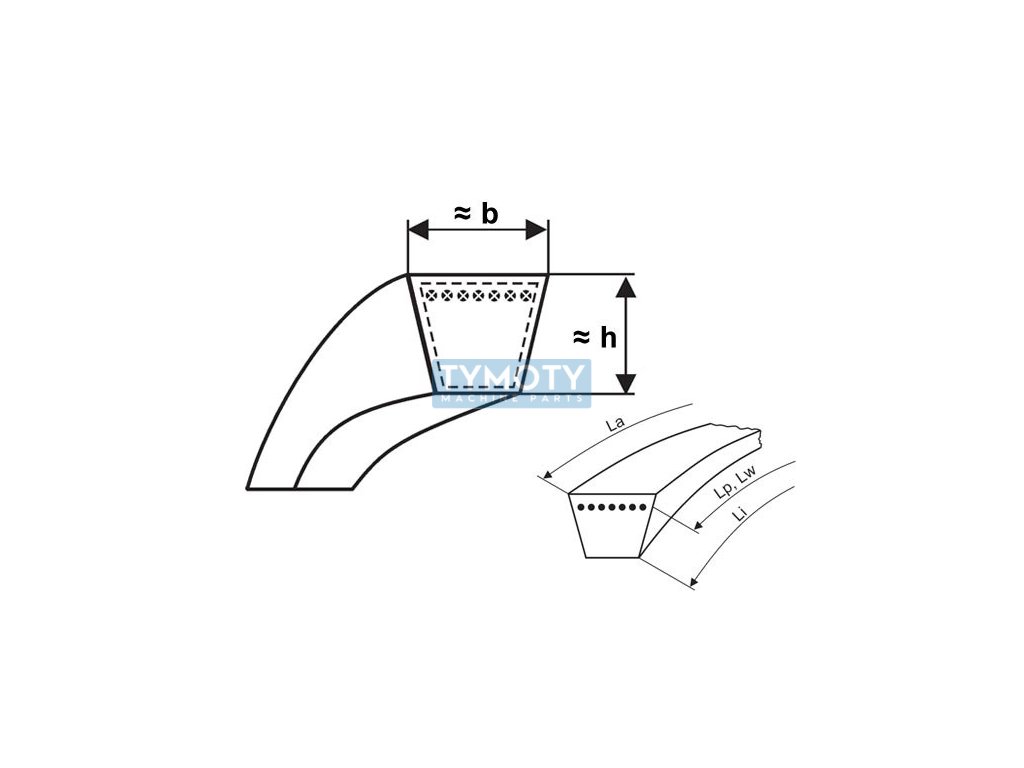

The belt is 22 mm wide and 18 mm high, and is coated, which increases its wear resistance and extends its service life. The wedge angle is 40°, which is a standard angle for this type of belt, optimized for effective power transmission. The belt is equipped with a polyester cord (PES), which provides high strength and stability during operation.

The temperature range of use is from -30 °C to +80 °C, which allows it to be used in various climatic conditions. The minimum recommended pulley diameter is 224 mm, which is important for proper tensioning and function of the belt. The inner length of the belt is 5117 mm, the calculated length Lw is 5200 mm and the outer length La is 5230 mm, which are key parameters for proper sizing and installation in the system.

The ProfiPlus range, to which this belt belongs, is known for its high performance and reliability, which makes it suitable for demanding applications in industry where a high level of reliability and resistance to dynamic loads is required.
