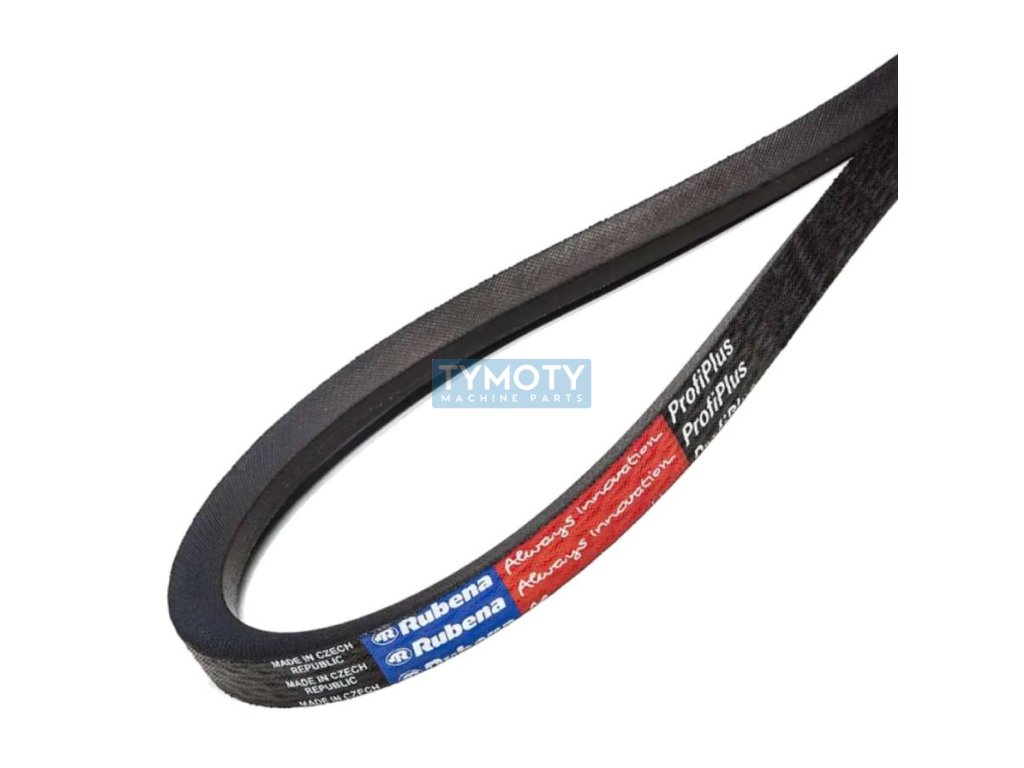

V-belt SPA 2700 Lw 12,7x2718 La L=L ProfiPlus Rubena
Code: 268766
Product detailed description
V-belt SPA 2700 Lw 12.7x2718 La L=L ProfiPlus Rubena is a narrow-profile belt designed for the transmission of mechanical energy in various industrial applications. This type of belt is manufactured by the renowned RUBENA brand, which is known for its quality and reliability. The belt is manufactured according to DIN 7753/1 and ISO 4184 standards, which guarantees its compatibility with international standards and a wide range of applications.The belt has an SPA profile, which means that it belongs to the category of narrow V-belts, which are suitable for applications requiring higher energy transfer efficiency and smaller drive system dimensions. The belt width is 12.7 mm and its height is 10 mm, which allows for effective power transmission while maintaining compact dimensions.
The total calculated length of the belt is 2700 mm, with the inner length (Li) being 2655 mm and the outer length (La) being 2718 mm. These dimensions are important for the correct tension and function of the belt in the drive system. The minimum pulley diameter on which the belt can be used is 90 mm, which is a critical parameter for ensuring correct bending and long-term service life of the belt.
The belt is coated, which means that its surface is protected from external influences, thus increasing its durability and service life. The type of cord used in this belt is PES (polyester), which provides high strength and resistance to elongation, thus ensuring stable power transmission.
The operating temperature range of the belt is from -30 °C to +80 °C, which allows it to be used in various climatic conditions and applications. The belt profile angle is 40°, which is a standard angle for this type of belt, optimized for efficient power transmission and minimizing wear.
The SPA 2700 Lw 12.7x2718 La L=L ProfiPlus Rubena V-belt is an ideal choice for applications where reliable and efficient transmission of mechanical energy is required with an emphasis on compactness and durability.
Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > SPA (12.7x10) |
|---|---|
| Weight: | 0.324 kg |
| Angle ( ° ): | 40 |
| Calculation length Lw, Lp, mm: | 2700 |
| Cord type: | PES |
| Country of origin: | CZ |
| DIN standard: | 7753/1 |
| Height H (mm): | 10 |
| Inner length Li (mm): | 2655 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Rubena |
| Maximum temperature °C: | +80 °C |
| Minimum diameter: | 90 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 2718 |
| Product: | V-belt narrow |
| Profile: | SPA |
| Width B (mm): | 12,7 |
| Řada: | ProfiPlus |
| Typ: | obalovaný |
