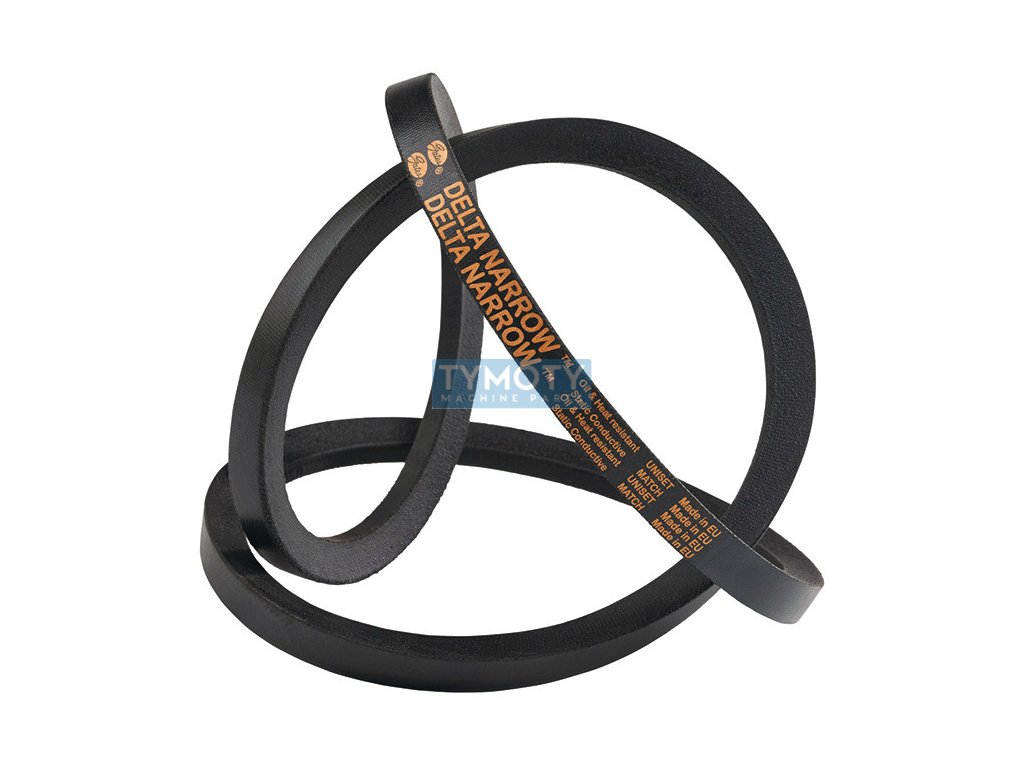

V-belt SPA 2650 Lw Gates Delta Narrow

Product detailed description

The SPA 2650 Lw Gates Delta Narrow V-belt is a narrow-profile belt that is part of the DELTA NARROW series from the renowned manufacturer GATES. This belt is designed according to DIN 7753/1 and ISO 4184 standards, which guarantees its reliability and compatibility with various industrial applications.

The belt has an SPA profile, which means that its width is 13 mm and its height is 10 mm. This profile is ideal for applications where high transmission capacity is required in a limited space. The wrapped type of belt increases its wear resistance and extends its service life. The SBR (styrene-butadiene rubber) material provides excellent abrasion resistance and flexibility at low temperatures, while the belt is able to operate in a temperature range from -30 °C to +60 °C. The minimum pulley diameter on which the belt can be used is 90 mm, which allows its use in compact drive systems.

The V-belt has an inner length Li of 2612 mm, a calculated length Lw of 2650 mm and an outer length La of 2668 mm. The belt profile angle is 40°, which is a standard angle for V-belts, ensuring optimal power transmission and reducing the risk of slipping. The belt cord is made of polyester (PES), which provides high tensile strength and stability under dynamic loads.

This V-belt is suitable for a wide range of industrial applications, including drive systems in mechanical engineering, agriculture and other industries where reliable power transmission is required. Its exact designation is SPA2650 DELTA NARROW and the production number is 9625-62650.
