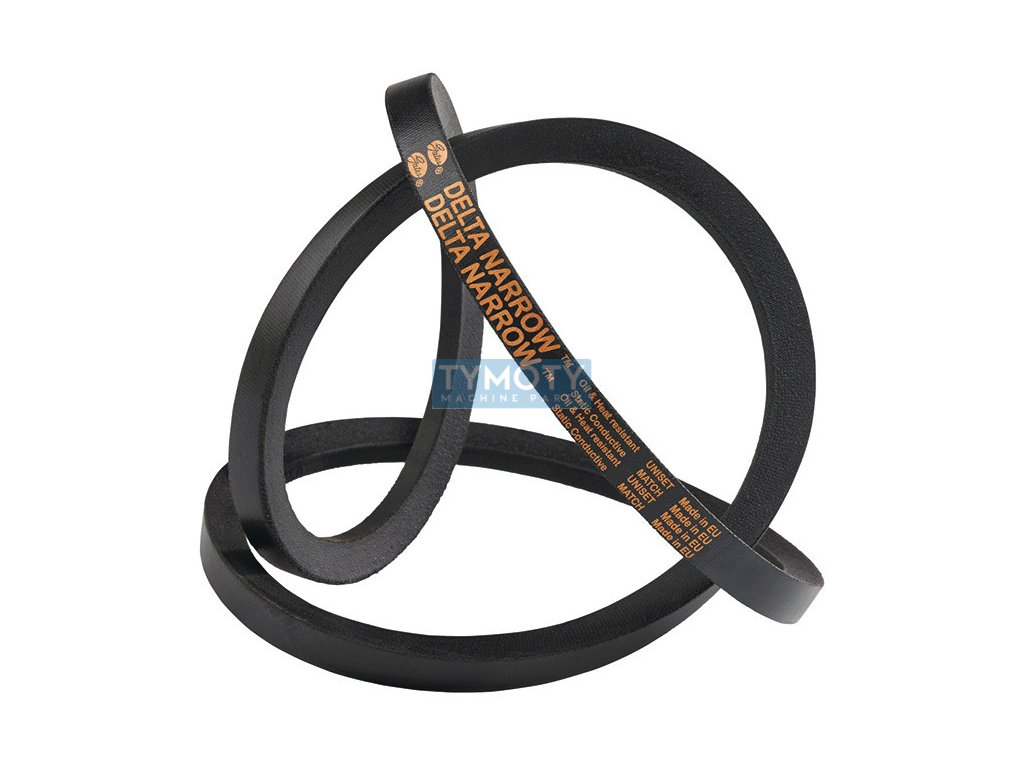

V-belt SPA 2432 Lw Gates Delta Narrow
Code: 540714
Product detailed description
The SPA 2432 Lw Gates Delta Narrow V-belt is a top-notch narrow-profile component designed for efficient power transmission in limited installation space. This belt has a length of 2432 mm, a width of 13 mm and a height of 10 mm, and its profile is marked as SPA. The inner length of the belt is 2394 mm and the outer length reaches 2450 mm. The belt is manufactured according to DIN 7753/1 and ISO 4184 standards, which guarantees its quality and reliability.The belt material is SBR (styrene-butadiene rubber), which is known for its resistance to wear and temperature fluctuations. The belt is able to operate in a temperature range from -30 °C to +60 °C, which makes it suitable for various industrial applications. The minimum pulley diameter on which this belt can be fitted is 90 mm.
The V-belt is equipped with a patented Flex-Weave® cover, which provides excellent protection against oil, heat and dirt, thus extending its service life. The belt core is made of PES (polyester) tensile fibers, which ensure high strength and minimal stretching. This design allows the belt to transmit up to three times the power compared to traditional profiles with the same belt width.
Gates Delta Narrow is an ideal choice for applications where high performance, space saving and reliability in demanding operating conditions are required. The belt meets the requirements of RMA standards for resistance to oils, temperatures and has antistatic properties, making it a suitable component for modern industrial equipment.
Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > SPA (12.7x10) |
|---|---|
| Weight: | 0.285 kg |
| EAN: | 5414465317880 |
| Angle ( ° ): | 40 |
| Calculation length Lw, Lp, mm: | 2432 |
| Cord type: | PES |
| Country of origin: | FR |
| DIN standard: | 7753/1 |
| Height H (mm): | 10 |
| Inner length Li (mm): | 2394 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | SBR |
| Maximum temperature °C: | +60 °C |
| Minimum diameter: | 90 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 2450 |
| Product: | V-belt narrow |
| Profile: | SPA |
| Width B (mm): | 13 |
| Číslo výrobce: | 9625-62432 |
| Značení: | SPA2432 DELTA NARROW |
| Řada: | DELTA NARROW |
| Typ: | obalovaný |
