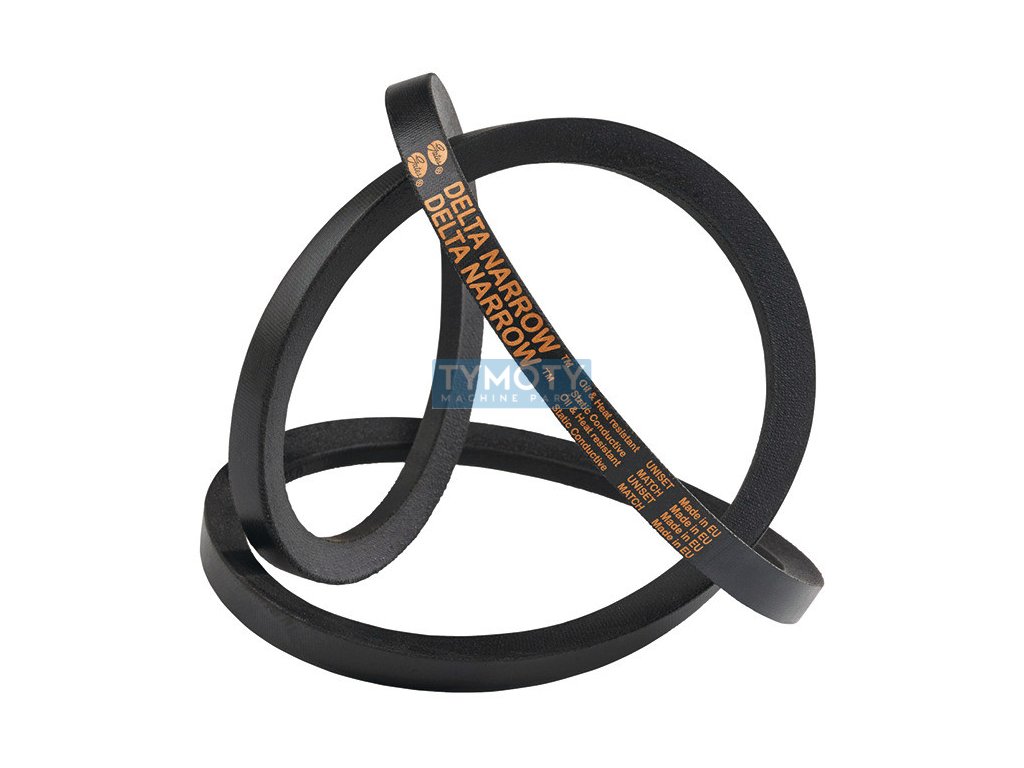

V-belt SPA 2282 Lw Gates Delta Narrow
Code: 540707
Product detailed description
The SPA 2282 Lw Gates Delta Narrow V-belt is a premium narrow-profile belt designed for efficient power transmission in confined spaces. This belt is 2282 mm long, 13 mm wide and 10 mm high, and falls within the SPA profile. Its design allows for up to three times the transmission capacity compared to traditional profiles for the same pulley width, which is achieved thanks to high-strength PES tensile fibers that are resistant to stretching and firmly integrated into the belt body.The patented Flex-Weave® sheath provides excellent protection against oil, heat and dirt, extending the life of the belt. The SBR (styrene-butadiene rubber) material ensures reliable operation in a temperature range from -30 °C to +60 °C. The belt is designed to meet DIN 7753/1 and ISO 4184 standards, and complies with RMA requirements for oil resistance, temperature resistance and antistatic properties.
With a minimum pulley diameter of 90 mm and an internal length of 2244 mm, this belt is ideal for industrial applications where high performance, space saving and reliability in demanding operating conditions are key. The manufacturer's designation is 9625-62282 and the external belt length is 2300 mm. This product is part of the DELTA NARROW range, which is known for its ability to transmit power efficiently while minimizing installation space.
Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > SPA (12.7x10) |
|---|---|
| Weight: | 0.267 kg |
| EAN: | 5414465317668 |
| Angle ( ° ): | 40 |
| Calculation length Lw, Lp, mm: | 2282 |
| Cord type: | PES |
| Country of origin: | FR |
| DIN standard: | 7753/1 |
| Height H (mm): | 10 |
| Inner length Li (mm): | 2244 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | SBR |
| Maximum temperature °C: | +60 °C |
| Minimum diameter: | 90 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 2300 |
| Product: | V-belt narrow |
| Profile: | SPA |
| Width B (mm): | 13 |
| Číslo výrobce: | 9625-62282 |
| Značení: | SPA2282 DELTA NARROW |
| Řada: | DELTA NARROW |
| Typ: | obalovaný |
