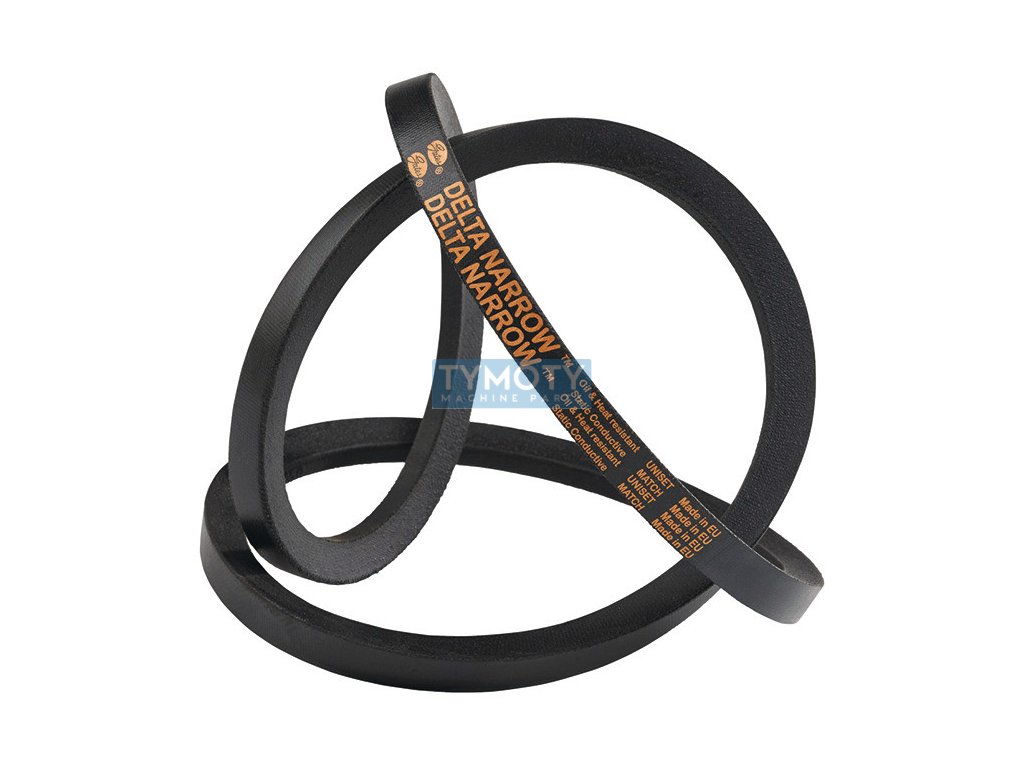

V-belt SPA 1732 Lw Gates Delta Narrow

Product detailed description

The SPA 1732 Lw Gates Delta Narrow V-belt is specifically designed for applications requiring narrow profiles and high power transmission efficiency. This belt is part of the DELTA NARROW series and is manufactured by the renowned manufacturer GATES, which guarantees high quality and reliability.

The belt has an SPA profile, which is characterized by a width of 13 mm and a height of 10 mm. This profile is optimized for efficient power transmission with smaller dimensions, which allows its use in compact mechanisms. The wedge angle is 40°, which contributes to optimal engagement and minimizing slippage.

The belt material is SBR (styrene-butadiene rubber), which is known for its wear resistance and ability to operate in a wide temperature range from -30 °C to +60 °C. This material guarantees long service life and reliability even in demanding operating conditions.

The belt is coated, which increases its resistance to external influences and improves its mechanical properties. The cord type is PES (polyester), which provides high strength and dimensional stability, thus reducing the risk of belt elongation during operation.

The belt's length parameters are as follows: the inner length Li is 1694 mm, the calculated length Lw (or Lp) is 1732 mm and the outer length La is 1750 mm. The minimum pulley diameter on which the belt can be used is 90 mm, which allows its application in various industrial equipment.

The belt complies with DIN 7753/1 and ISO 4184 standards, which confirms its quality and compatibility with international standards. The manufacturer's designation for this product is 9625-61732, which makes it easier to identify and order. This V-belt is ideal for use in various industrial applications where high efficiency and reliability of power transmission are required.
