V-belt SPA 1257 Lw optibelt RED POWER 3
Code: 241936
Product detailed description

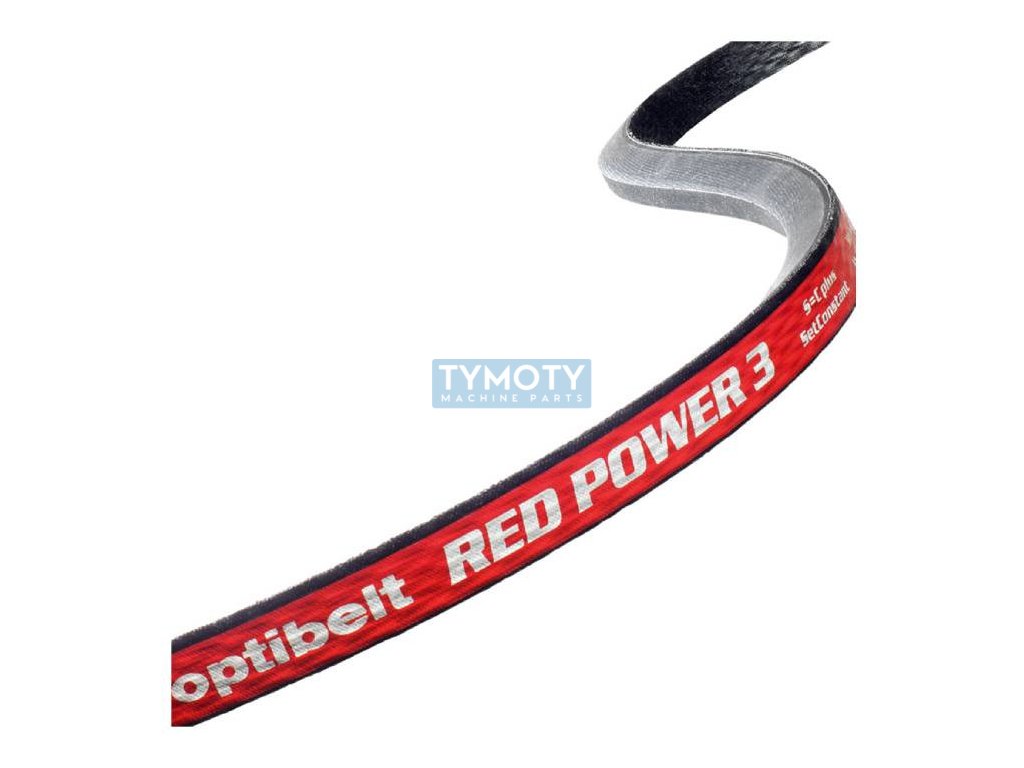

SPA 1257 Lw - (12.7x1275 La) is a coated, narrow V-belt. It is manufactured by optibelt under the trade name RED POWER 3. The belt has excellent performance and long service life. The reinforced construction allows for higher power transmission - up to 30% more than with conventional V-belts. The S=C (SetConstant) production system guarantees strict length tolerances for use in a set on one pulley. Electrical conductivity is guaranteed according to ISO 1813. Temperature resistance from -30 to +60 C. The SPA 1257 Lw V-belt has an inner length Li 1212 and an outer length La is 1275 mm. The belt width is 12.7 and the height is 11 mm.Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > SPA (12.7x10) |
|---|---|
| Weight: | 1.026 kg |
| EAN: | 4014486076813 |
| Calculation length Lw, Lp, mm: | 1257 |
| Height H (mm): | 10 |
| Inner length Li (mm): | 1212 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 60 °C |
| Minimum diameter: | 90 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 1275 |
| Product: | V-belt narrow |
| Profile: | SPA |
| Width B (mm): | 12,7 |
| Číslo výrobce: | 1531333 |
| Značení: | SPA 1257 RP |
| Řada: | RED POWER 3 |
| Typ: | obalovaný |
