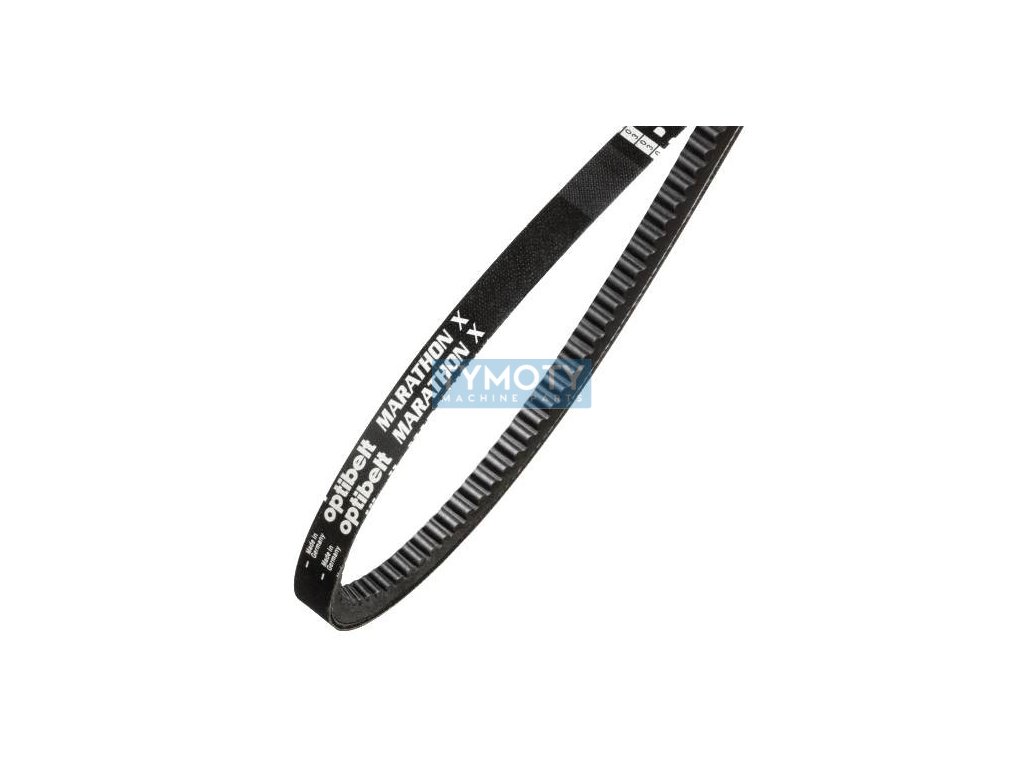

V-belt AVX 10x650 La optibelt Marathon X
Code: 250008
Product detailed description
The AVX 10x650 La optibelt Marathon 1 V-belt is an automotive cut AVX belt manufactured according to DIN 7753/3, ISO 2790 standards with formed internal teeth in a maintenance-free design. The AVX 10x650 La V-belt is specially designed for driving engine aggregates of passenger and commercial vehicles. It is characterized by a long service life, quiet operation, high power transmission efficiency and high resistance to abrasion. Thanks to the internal teeth, it can be used for small pulley diameters with a minimum calculated diameter of 50. The manufacturer optibelt brand Marathon 1 can operate in the temperature range from -45 to +80 °C. The belt length is given in mm, measured along the outer circumference and marked \La\. For AVX10 belts, the calculation for the calculated length Lw = La - 13 and for the internal length Li = La - 51."Additional parameters
| Category: | Belts > wedge simple > automotive > AVX10 (10x8) |
|---|---|
| Weight: | 0.049 kg |
| EAN: | 4044978166418 |
| Calculation length Lw, Lp, mm: | 637 |
| Height H (mm): | 8 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 50 |
| Outer length La (mm): | 650 |
| Product: | V-belt for cars |
| Profile: | AVX |
| Width B (mm): | 10 |
| Číslo výrobce: | 1018779 |
| Značení: | AVX 10 X 650 |
| Řada: | MARATHON X |
| Typ: | klasický řezaný |
