V-belt 3M 437 Gates Polyflex

Product detailed description

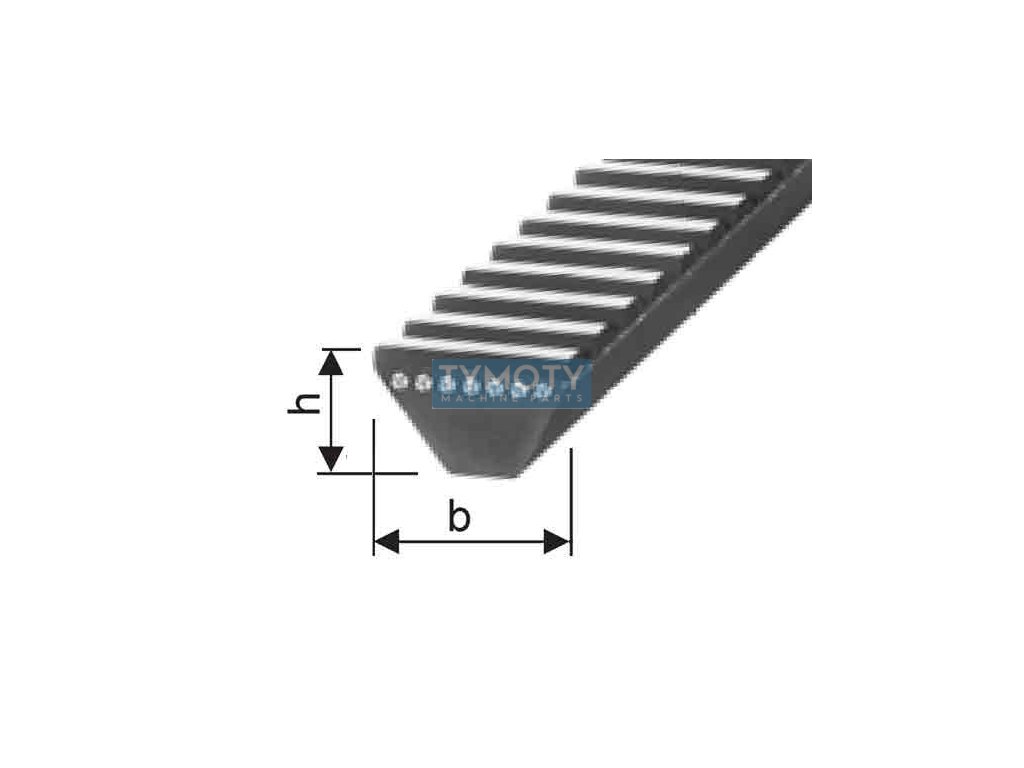

Polyflex® V-belts are synonymous with high power density in a small space. This compact and strong belt with a nominal top width of 3 to 11 mm transmits more power and features a higher gear ratio.

Polyflex® belts were developed by Gates and are manufactured using a patented manufacturing process. They provide higher load capacities even at higher speeds in drives with multiple V-belts. This results in significant savings and greater design freedom.

Polyflex® is suitable for extremely small diameter pulleys and very compact high-speed drives. Ideal for use on machines and tools requiring high power and smooth running in limited space, such as in table milling machines, lathe drives, spindle drives of woodworking and metalworking machines, computer peripherals, small blowers, etc.

Identification

• Permanently marked description of the belt type and its dimensions.
• Optibelt WR / Goodyear Neothane / Bando Banflex / Mitsuboshi Polymax

Construction

• The bonded belt construction improves stability.
• The 60° angle supports the tension layer better and ensures even stress distribution.
• The small profiles make these belts ideal for drives with high shaft speeds and for compact drives with smooth running.
• Excellent adhesion of tension cords and poly belt.
• Extra stiff. Polyurethane is highly resistant to fatigue, wear and ozone.
• The polyurethane compound, far superior to conventional belt materials, provides high fatigue and wear resistance and a high coefficient of friction.
• It also increases adhesion to tensile cords.
chemicals and oil.
• Consistency across the Polyflex® range is ensured by the fact that the polyurethane compound is not layered, but cast as a whole.
• The knurled top side increases lateral rigidity and does not increase bending stress, and also helps to cool during operation.

Benefits

• Long service life of the drives.
• The shaft speed can exceed 10,000 rpm.
• Provides high performance and smooth operation in high-precision machines.
• Low maintenance costs, as the belt needs less tightening.
• For impact belts 3M / 5M / 7M / 11M
• Freedom in design and space saving, which is not possible with belts with conventional rubber construction.
