V-belt 22x2240 Li - C 2298 Lw optibelt VB
Code: 242753
Product detailed description

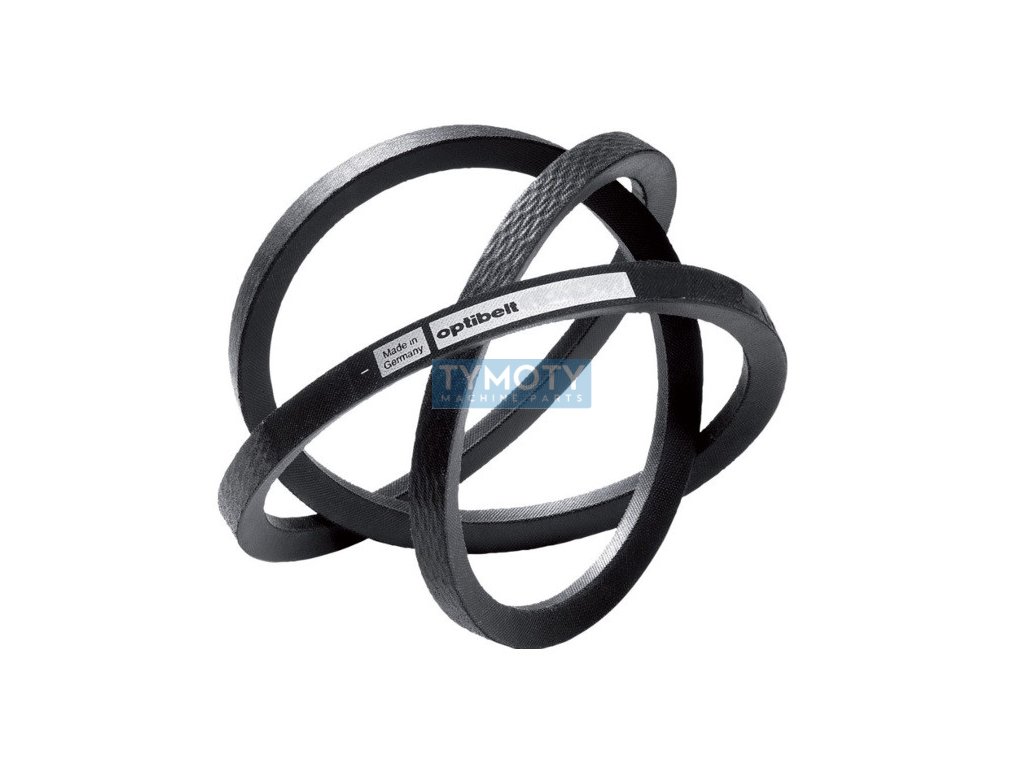

V-belt 22x2240 Li - C 2298 Lw is (C 88) a classic wrapped belt from the optibelt VB brand. The profile designation is \C 88\. This V-belt has a width of 22 mm and a profile height of 19 mm. The inner pitch Li = 2240 mm, the calculated length Lw = 2294 mm and the outer length La = 2328 mm. The long service life of the 22 x 2240 belt is ensured by the latest materials and very precise production on computer-controlled machines. The L=L or S=C system guarantees strict length tolerances for use in a set. - we are a reliable supplier of Rubena and Optibelt belts. Our own stock - tens of thousands of belts in stock for immediate dispatch.Additional parameters
| Category: | Belts > wedge simple > classic breaded > C (22x14) |
|---|---|
| Weight: | 0.726 kg |
| EAN: | 4014486037623 |
| Calculation length Lw, Lp, mm: | 2294 |
| Height H (mm): | 14 |
| Hole profile: | C88 |
| Inner length Li (mm): | 2240 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 180 |
| Outer length La (mm): | 2328 |
| Product: | V-belt classic |
| Profile: | 22/C |
| Width B (mm): | 22 |
| Číslo výrobce: | 1747259 |
| Značení: | 22 X 2240 |
| Řada: | VB |
| Typ: | obalovaný |
