V-belt 20x855 X Li - X20x903 Lw PP Profi-X Rubena
Code: 241433
Product detailed description

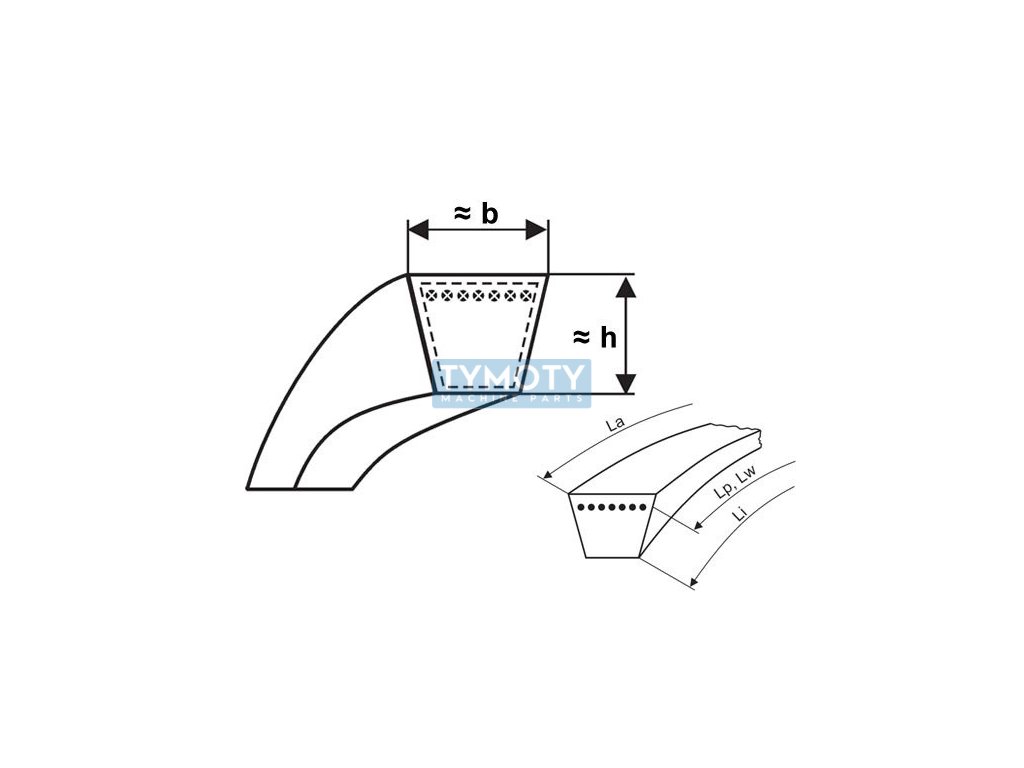

V-belt 20x855 Li - X20x903 Lw is a classic cut belt from the Profi-X Rubena brand. The profile designation is \X20\. This V-belt has a width of 20 mm and a profile height of 12.5 mm. The inner sections Li = 855 mm, the calculated length Lw = 903 mm and the outer length La = 934 mm. The long service life of the 20 x 855 belt is ensured by the latest materials and very precise production on computer-controlled machines. The L=L or S=C system guarantees strict length tolerances for use in a set. - we are a reliable supplier of Rubena and Optibelt belts. Our own stock - tens of thousands of belts in stock for immediate dispatch.Additional parameters
| Category: | Belts > wedge simple > classic cut > X20 (20x12.5) |
|---|---|
| Weight: | 0.235 kg |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 903 |
| Cord type: | PES |
| Country of origin: | CZ |
| DIN standard: | 2215 |
| Height H (mm): | 12,5 |
| Inner length Li (mm): | 855 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Rubena |
| Maximum temperature °C: | +80 °C |
| Minimum diameter: | 140 |
| Minimum temperature °C: | -45 °C |
| Outer length La (mm): | 934 |
| Product: | V-belt classic |
| Profile: | X20 |
| Width B (mm): | 20 |
| Řada: | Profi-X |
| Typ: | řezaný plný profil |
