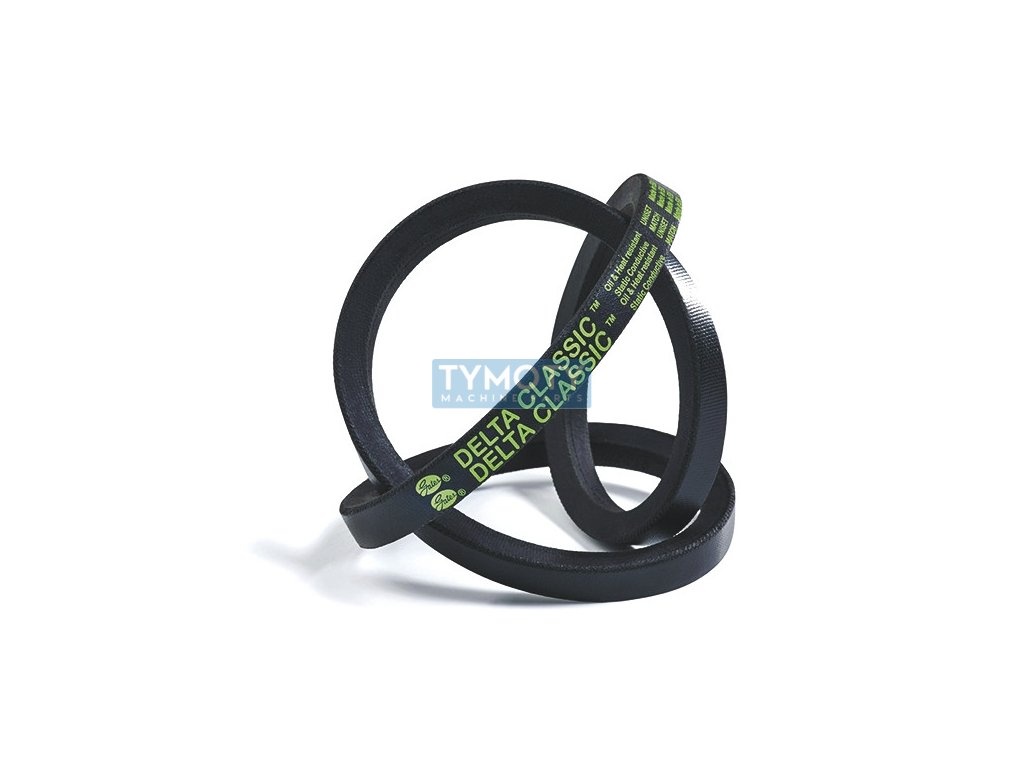

V-belt 17x2640 Li - B 2680 Lw (B104) Gates Delta Classic

Product detailed description

The Gates Delta Classic V-belt with the designation 17x2640 Li - B 2680 Lw (B104) is designed for efficient power transmission in various industrial and agricultural applications. This belt has a coated profile, which provides increased resistance to external influences such as oils, ozone and high temperatures. The belt dimensions are precisely defined: the inner length Li is 2640 mm, the calculated length Lw is 2680 mm and the outer length La is 2709 mm. The belt width is 17 mm, the height is 11 mm and the profile is designated as 17/B.

The belt is made of SBR (styrene-butadiene rubber), which provides good resistance to wear and temperature extremes, with the operating temperature range ranging from -30 °C to +60 °C. The minimum diameter of the pulley for which the belt is intended is 140 mm. The belt is designed with a 40° profile angle, which contributes to optimal power transmission and reduces the risk of slippage.

The Gates Delta Classic V-belt is equipped with strong polyester (PES) tension cords, which ensure even load distribution and minimize the risk of damage when bending. This design guarantees a long service life and reliable performance even under difficult operating conditions, including shock and vibration. The belt complies with DIN 2215 and ISO 4184 standards, which confirms its quality and suitability for a wide range of applications. The serial number of this model is 9622-61040.
