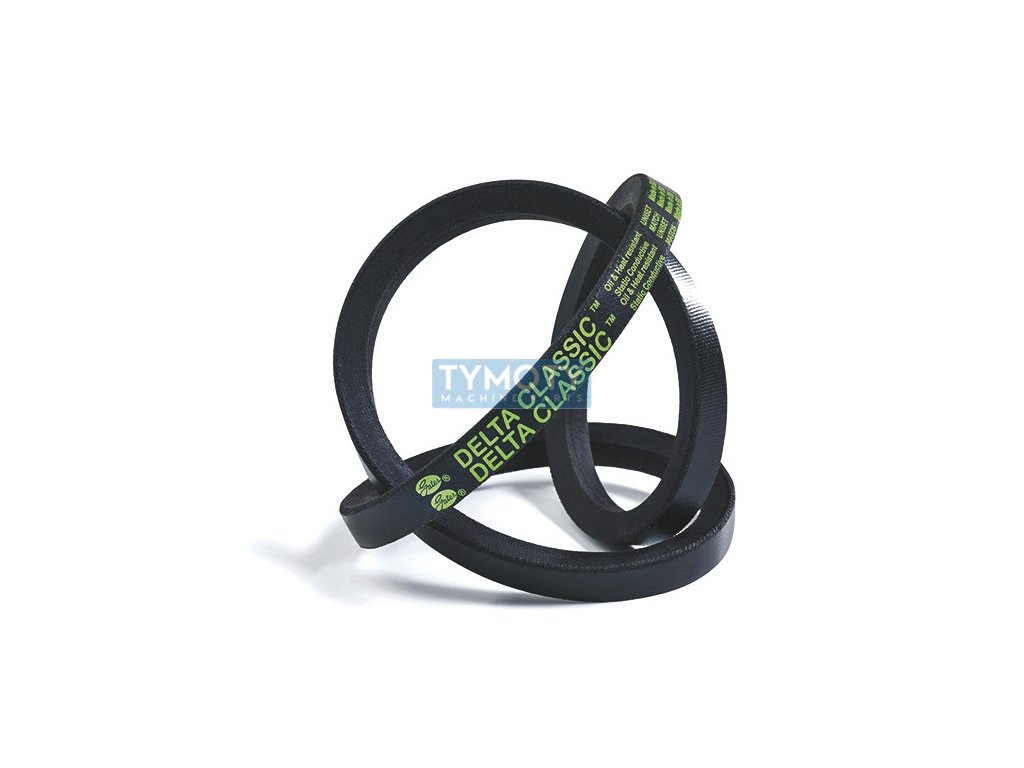

V-belt 17x2310 Li - B 2350 Lw (B91) Gates Delta Classic

Product detailed description

Gates Delta Classic V-belt with the designation 17x2310 Li - B 2350 Lw (B91) is a high-quality component designed for the transmission of mechanical energy in various industrial applications. This belt falls into the category of classic V-belts with a profile of 17/B, which means that its width is 17 mm and its height is 11 mm. These dimensions comply with DIN 2215 and ISO 4184 standards, which guarantees its compatibility with various types of pulleys and pulleys.

The belt is made of SBR (styrene-butadiene rubber), which provides good wear resistance and flexibility in a wide temperature range. The operating temperature range is from -30 °C to +60 °C, which allows its use in various climatic conditions. The inner length of the belt is 2310 mm, the calculated length (Lw, Lp) is 2350 mm and the outer length (La) is 2379 mm. These parameters are important for the precise adjustment and tensioning of the belt in the drive system.

The belt is coated, which increases its resistance to external influences and improves its service life. The type of cord used in this belt is PES (polyester), which provides high strength and stability in power transmission. The minimum diameter of the pulley on which this belt can be mounted is 140 mm, which is a critical parameter for proper functioning and minimizing wear.

The belt profile angle is 40°, which is a standard angle for V-belts of this type, ensuring optimal contact and force transfer between the belt and the pulley. The manufacturer Gates is known for its quality and reliability in the field of drive systems, which guarantees that this belt will serve reliably in difficult conditions. The manufacturer's part number for this particular model is 9622-60910, making it easy to identify and order.
