V-belt 17x1290 X Li - BX 1333 Lw PP Profi-X Rubena
Code: 241398
Product detailed description

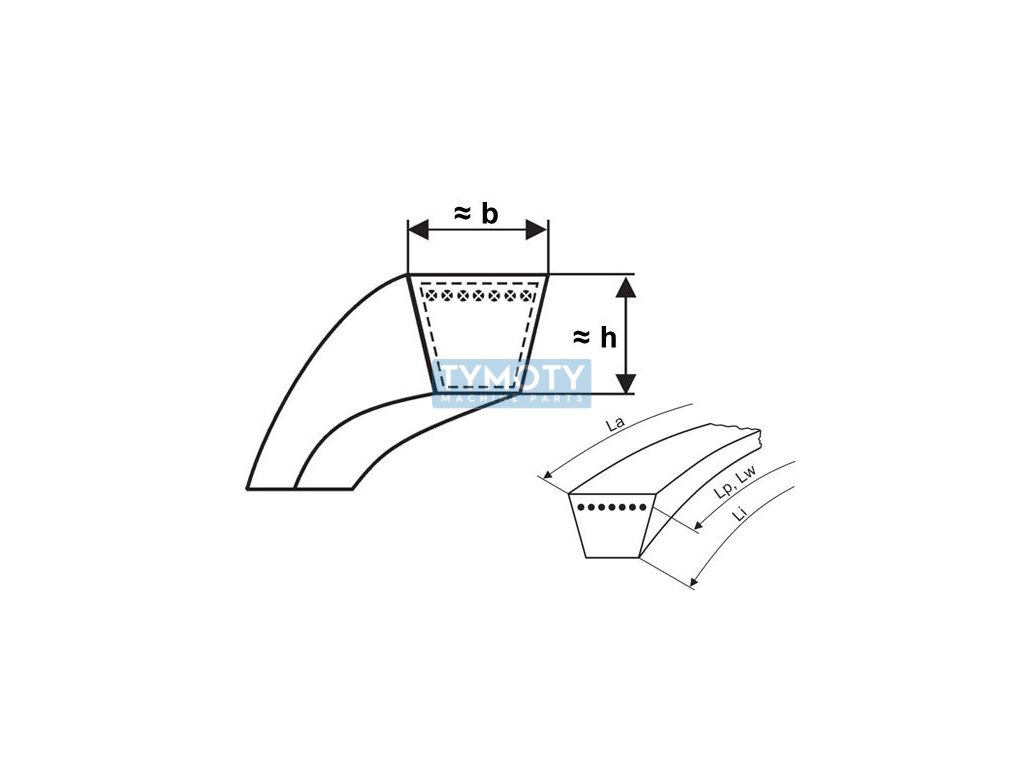

V-belt 17x1290 Li - BX 1333 Lw is a classic cut belt from the Profi-X Rubena brand. The profile designation is \BX\. This V-belt has a width of 17 mm and a profile height of 14 mm. The inner section Li = 1290 mm, the calculated length Lw = 1330 mm and the outer length La = 1359 mm. The long service life of the 17 x 1290 belt is ensured by the latest materials and very precise production on computer-controlled machines. The L=L or S=C system guarantees strict length tolerances for use in a set. - we are a reliable supplier of Rubena and Optibelt belts. Our own warehouse stocks - tens of thousands of belts in stock for immediate dispatch."Additional parameters
| Category: | Belts > wedge simple > classic cut > BX (17x11) |
|---|---|
| Weight: | 0.24 kg |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 1333 |
| Cord type: | PES |
| Country of origin: | CZ |
| DIN standard: | 2215 |
| Height H (mm): | 11 |
| Inner length Li (mm): | 1290 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Rubena |
| Maximum temperature °C: | +80 °C |
| Minimum diameter: | 100 |
| Minimum temperature °C: | -45 °C |
| Outer length La (mm): | 1359 |
| Product: | V-belt classic |
| Profile: | X17/BX |
| Width B (mm): | 17 |
| Řada: | Profi-X |
| Typ: | řezaný plný profil |
