V-belt 13x820 Li - A 850 Lw (A32) Gates Delta Classic

Product detailed description

V-belt 13x820 Li - A 850 Lw (A32) Gates Delta Classic is part of the DELTA CLASSIC product line, manufactured by the renowned manufacturer GATES. This belt belongs to the category of classic V-belts, which are known for their reliability and long service life. Its construction is coated, which increases its wear resistance and extends its service life in difficult operating conditions.

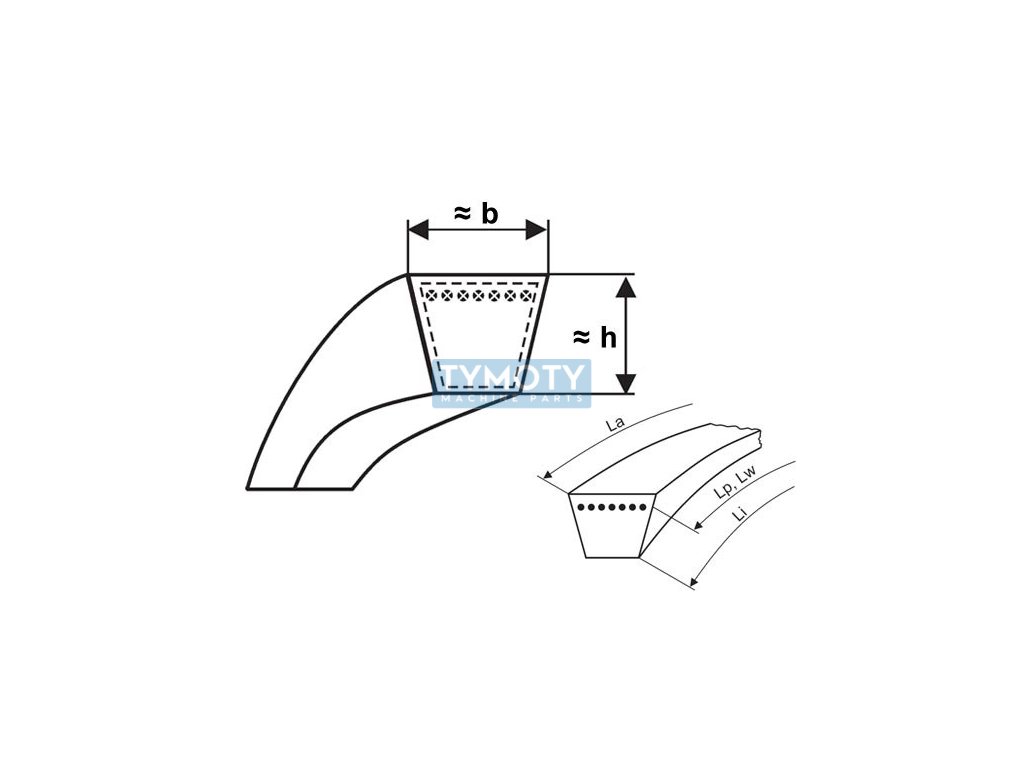

The dimensions of the belt are precisely defined: width 13 mm, height 8 mm and profile 13/A, which corresponds to DIN 2215 and ISO 4184 standards. The inner length Li is 820 mm, the calculated length Lw is 850 mm and the outer length La reaches 870 mm. These parameters are key for the correct installation and function of the belt in mechanical systems.

The belt material is SBR (styrene-butadiene rubber), which is known for its wear resistance and ability to operate in a wide temperature range from -30 °C to +60 °C. The belt is equipped with a polyester cord (PES), which ensures high strength and stability in power transmission.

The belt is designed for a minimum pulley diameter of 90 mm and its design angle is 40 degrees, which is standard for this type of belt. These properties allow it to be used in various industrial applications where reliable transmission of mechanical energy is required.

The Gates Delta Classic V-belt is ideal for use in mechanical systems where high efficiency and reliability in power transmission are required, even in difficult operating conditions. Its precise dimensions and high-quality materials guarantee long-term functionality and minimal maintenance requirements.
