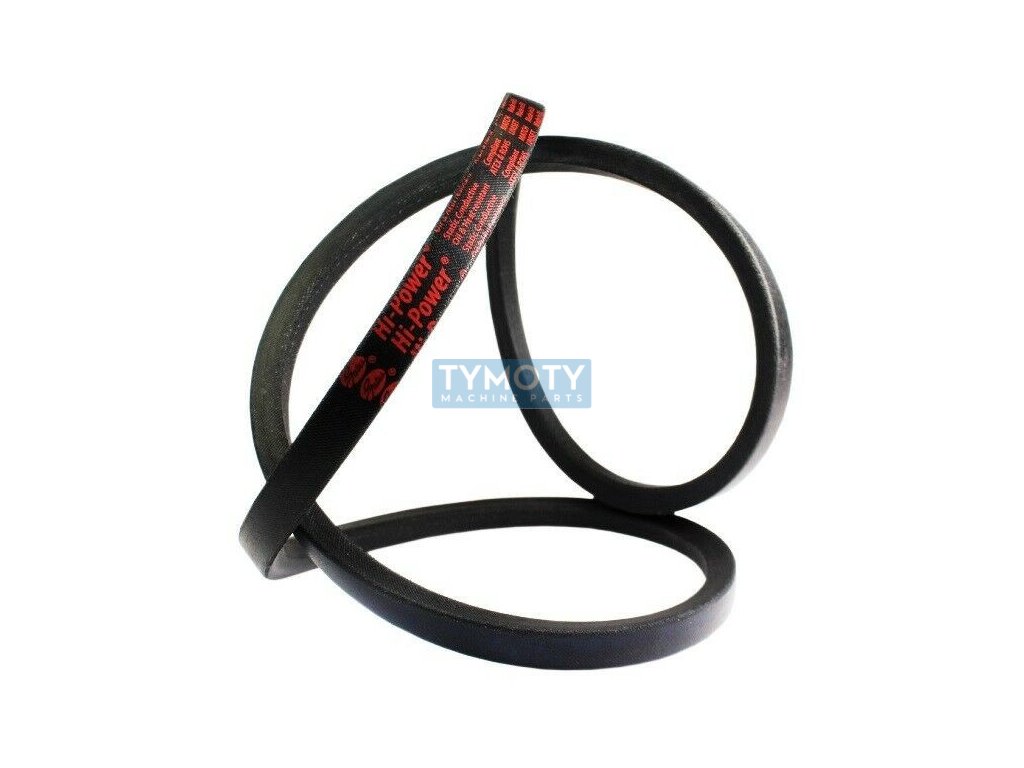

V-belt 13x775 Li - A 805 Lw (A30) Gates HI-Power

Product detailed description

V-belt 13x775 Li - A 805 Lw (A30) Gates HI-Power is designed for the transmission of mechanical energy in various industrial applications. This belt is part of the HI-POWER product line from the renowned manufacturer GATES, which is known for its high-quality and reliable components for drive systems. The belt is classified as a coated V-belt, which means that its surface is protected by a special coating that increases its wear resistance and extends its service life.

The dimensions of this V-belt are precisely defined: width 13 mm, height 8 mm and calculated length 805 mm. The inner length (Li) is 775 mm, while the outer length (La) reaches 825 mm. The belt profile is marked as 13/A, which corresponds to the standard dimensions for this type of belt. The belt is designed with a 40° angle, which is typical for V-belts, to ensure optimal power transmission and minimize slippage.

The material used to make the belt is CR (Chloroprene Rubber), which is known for its high resistance to oils, heat and wear. This material allows the belt to operate in a temperature range from -30°C to +60°C, making it a suitable choice for various operating conditions. The type of cord used in the belt is PES (Polyester), which provides high strength and resistance to stretching, ensuring stable performance throughout the life of the belt.

The belt complies with DIN 2215 and ISO 4184, which guarantees its compatibility and quality according to international standards. The minimum pulley diameter on which the belt can be used is 90 mm, which is an important parameter for the correct design of the drive system. The serial number of this belt is 9002-10030, making it easy to identify and order. This V-belt is an ideal solution for applications requiring reliable and efficient power transmission.
