V-belt 13x686 X Li - AX 716 Lw optibelt Super TX
Code: 241644
Product detailed description

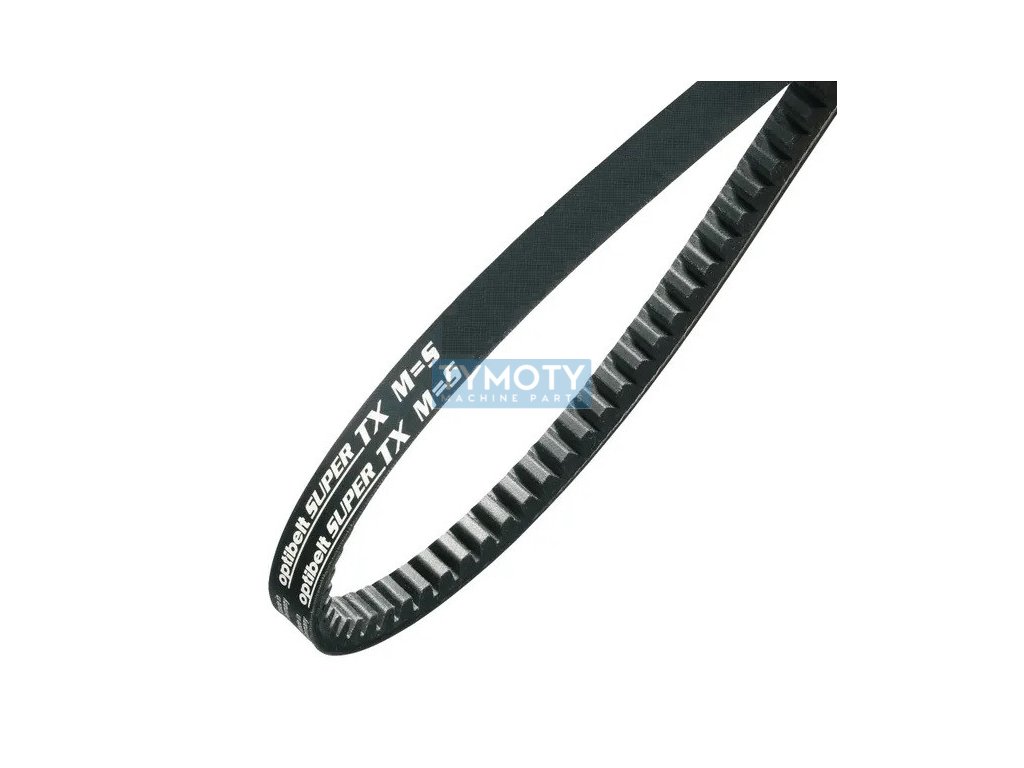

V-belt 13x686 Li - AX 716 Lw is (AX 27) a classic cut belt from the optibelt Super TX brand. The profile designation is \AX 27\. This V-belt has a width of 13 mm and a profile height of 11 mm. The inner sections Li = 686 mm, the calculated length Lw = 716 mm and the outer length La = 736 mm. The long service life of the X13 x 716 belt is ensured by the latest materials and very precise production on computer-controlled machines. The L=L or S=C system guarantees strict length tolerances for use in a set. - we are a reliable supplier of Rubena and Optibelt belts. Our own stock - tens of thousands of belts in stock for immediate dispatch."Additional parameters
| Category: | Belts > wedge simple > classic cut > AX (13x8) |
|---|---|
| Weight: | 0.071 kg |
| EAN: | 4014486095692 |
| Calculation length Lw, Lp, mm: | 716 |
| Height H (mm): | 8 |
| Hole profile: | AX27 |
| Inner length Li (mm): | 686 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 63 |
| Outer length La (mm): | 736 |
| Product: | V-belt classic |
| Profile: | X13/AX |
| Width B (mm): | 13 |
| Číslo výrobce: | 1571322 |
| Značení: | X13 X 716 |
| Řada: | SUPER TX |
| Typ: | řezaný |
