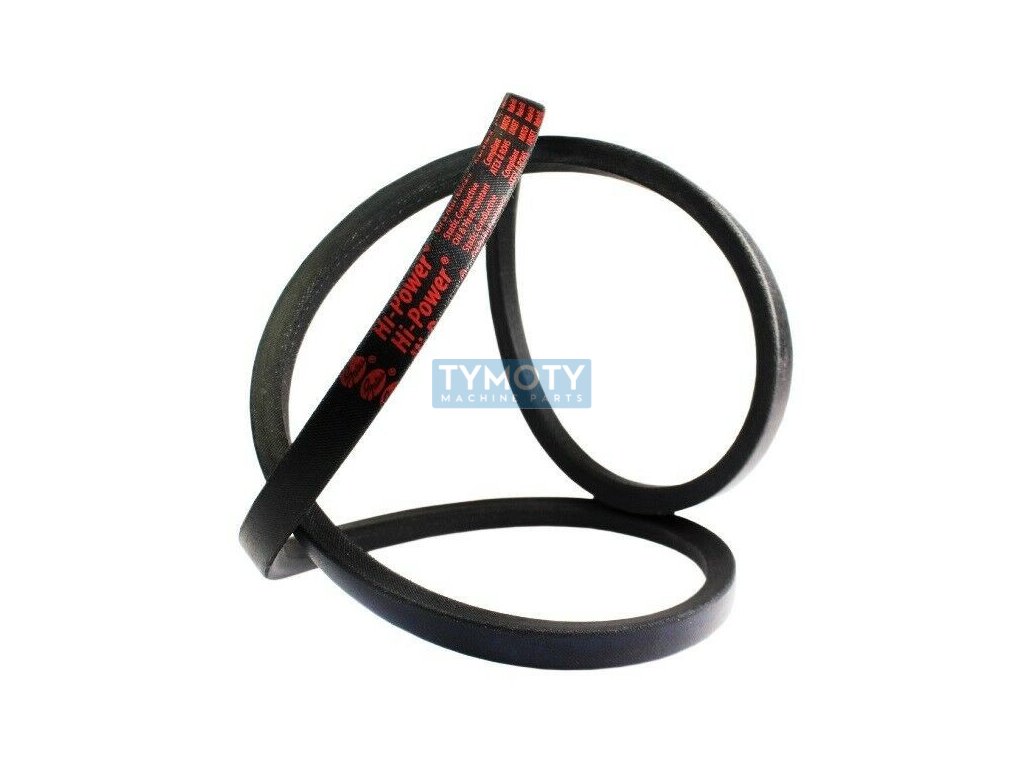

V-belt 13x2440 Li - A 2475 Lw (A96) Gates HI-Power

Product detailed description

V-belt 13x2440 Li - A 2475 Lw (A96) Gates HI-Power is a high-quality component designed for the transmission of mechanical energy in various industrial applications. This belt is manufactured by the renowned manufacturer GATES and belongs to the HI-POWER series, which is known for its reliability and long service life.

The belt has a 13/A profile, which means that its width is 13 mm and its height is 8 mm. These dimensions are optimized for efficient power transmission and guarantee stability during operation. The belt is coated, which increases its wear resistance and extends its service life. The coating also provides additional protection against external influences such as dust and moisture.

The length of the belt is defined by several parameters: the inner length Li is 2440 mm, the calculated length Lw (or Lp) is 2475 mm and the outer length La is 2490 mm. These values are important for correct tensioning and installation of the belt on pulleys with a minimum diameter of 90 mm.

The belt material is CR (chloroprene rubber), which provides excellent resistance to oils, temperature and ozone. The operating temperature range is from -30 °C to +60 °C, which allows the belt to be used in various climatic conditions. The cord type is PES (polyester), which ensures high strength and minimal elongation under load.

The belt complies with DIN 2215 and ISO 4184 standards, which guarantees its compatibility and quality according to international standards. The profile angle is 40°, which is the standard angle for this type of belt, ensuring optimal contact with the pulleys and efficient power transmission. The serial number of this model is 9002-10096, which makes it easy to identify and order.
