V-belt 13x1300 Li - A 1330 Lw (A51) Gates HI-Power

Product detailed description

V-belt 13x1300 Li - A 1330 Lw (A51) Gates HI-Power is a high-quality component designed for the transmission of mechanical energy in various industrial applications. This belt is part of the HI-POWER series, which is known for its durability and reliability. The manufacturer GATES ensures that the belt meets the strict standards DIN 2215 and ISO 4184, which guarantees its compatibility and performance in a wide range of applications.

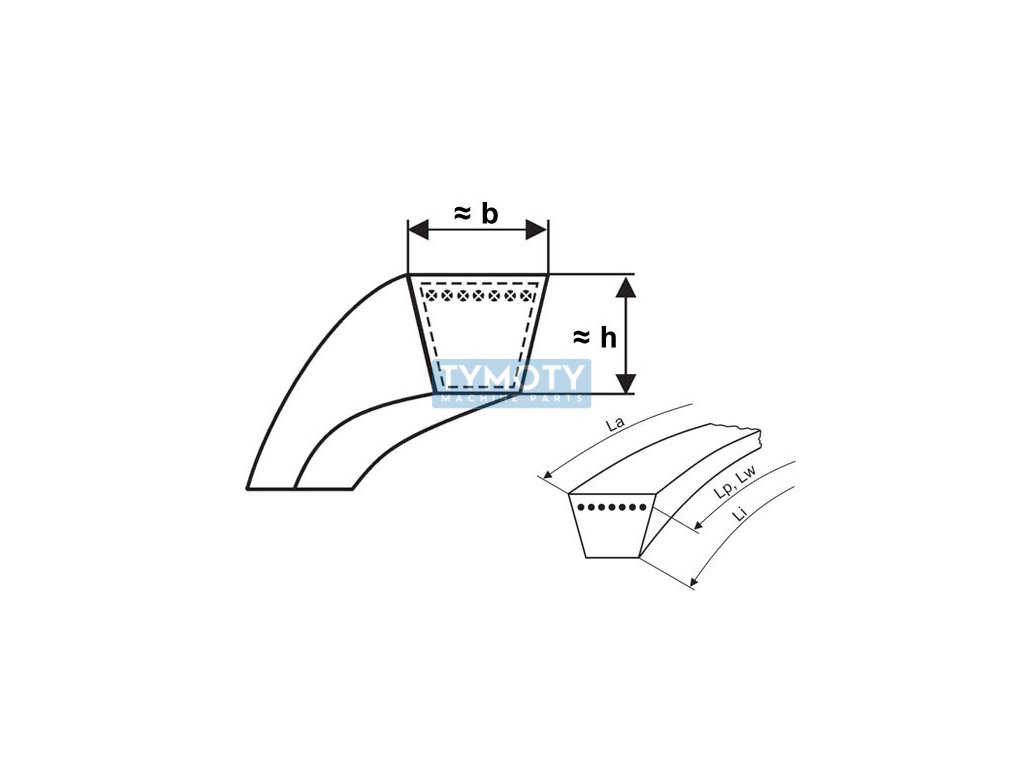

The belt has a 13/A profile, which means that its width is 13 mm and its height is 8 mm. This profile is ideal for applications where a high level of energy transmission and wear resistance is required. The inner length of the belt is 1300 mm, the calculated length Lw (or Lp) is 1330 mm and the outer length La is 1350 mm. These dimensions are critical for the correct tension and function of the belt in the system.

The V-belt is made of CR material (chloroprene rubber), which provides excellent resistance to temperature fluctuations and chemicals. The operating temperature range is from -30 °C to +60 °C, which allows it to be used in various climatic conditions. The belt is equipped with a PES cord, which increases its strength and resistance to stretching.

The wedge angle is 40°, which is the standard angle for this type of belt, ensuring optimal contact with the pulley and efficient power transmission. The minimum diameter of the pulley on which this belt can be mounted is 90 mm, which is an important parameter when designing and installing a drive system.

The V-belt is coated, which increases its wear resistance and extends its service life. The A51 13X1330LP/1300LI HIPOWER designation provides precise information about its dimensions and properties, making it easy to identify and select for specific applications. This belt is ideal for use in industrial equipment where reliability and high performance are required.
