V-belt 13x1145 Li - A 1175 Lw L=L Profi Rubena

Product detailed description

V-belt 13x1145 Li - A 1175 Lw L=L Profi Rubena is a classic coated belt designed for the transmission of mechanical energy in various industrial applications. This belt is manufactured by the renowned Rubena brand and meets the DIN 2215 and ISO 4184 standards, which guarantees its quality and reliability in operation.

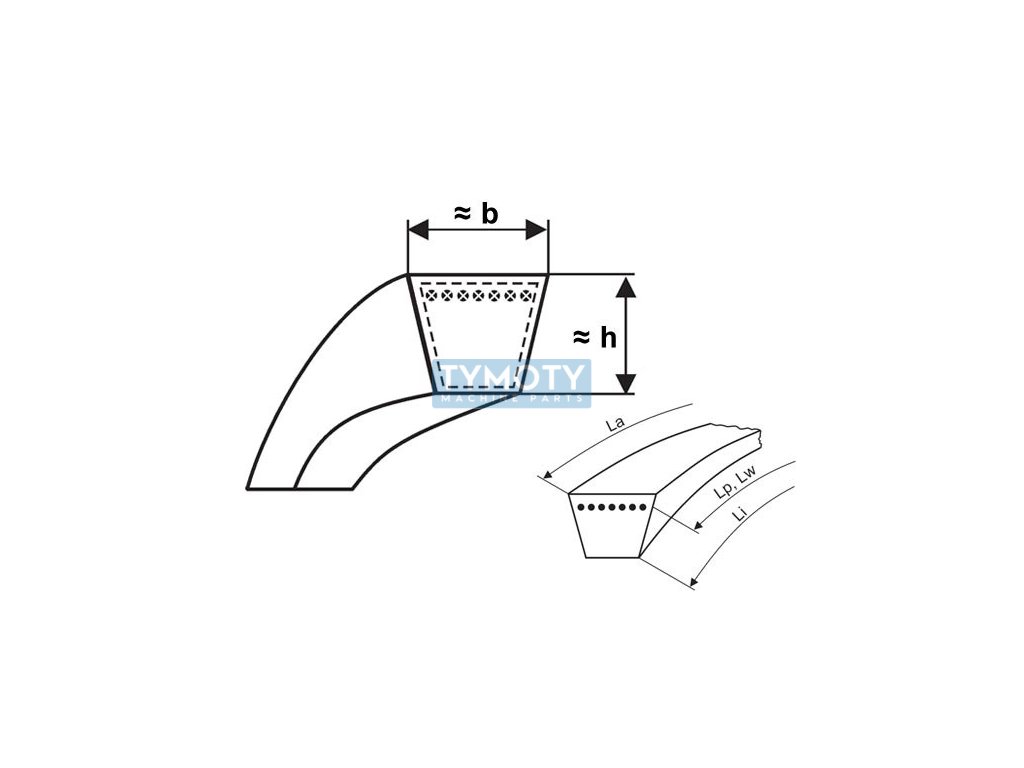

The belt has a 13/A profile with precise dimensions: width 13 mm and height 8 mm. The inner length (Li) is 1145 mm, the calculated length (Lw, Lp) is 1175 mm and the outer length (La) reaches 1195 mm. These dimensions are critical for correct installation and function in drive systems.

The V-belt is designed with an angle of 40 degrees, which is a standard angle for this type of belt, ensuring optimal contact and force transfer between the belt and the pulleys. The belt is equipped with a PES cord, which provides high strength and resistance to tensile forces, thus increasing its service life and reliability.

The temperature range in which the belt can work effectively is from -30 °C to +80 °C, which allows it to be used in various climatic conditions. The minimum diameter of the pulley on which the belt can be mounted is 71 mm, which is an important parameter for the design and optimization of the drive system.

This V-belt is part of the Profi series, which is known for its high quality and performance. It is ideal for use in industrial applications where high reliability and long service life are required.
