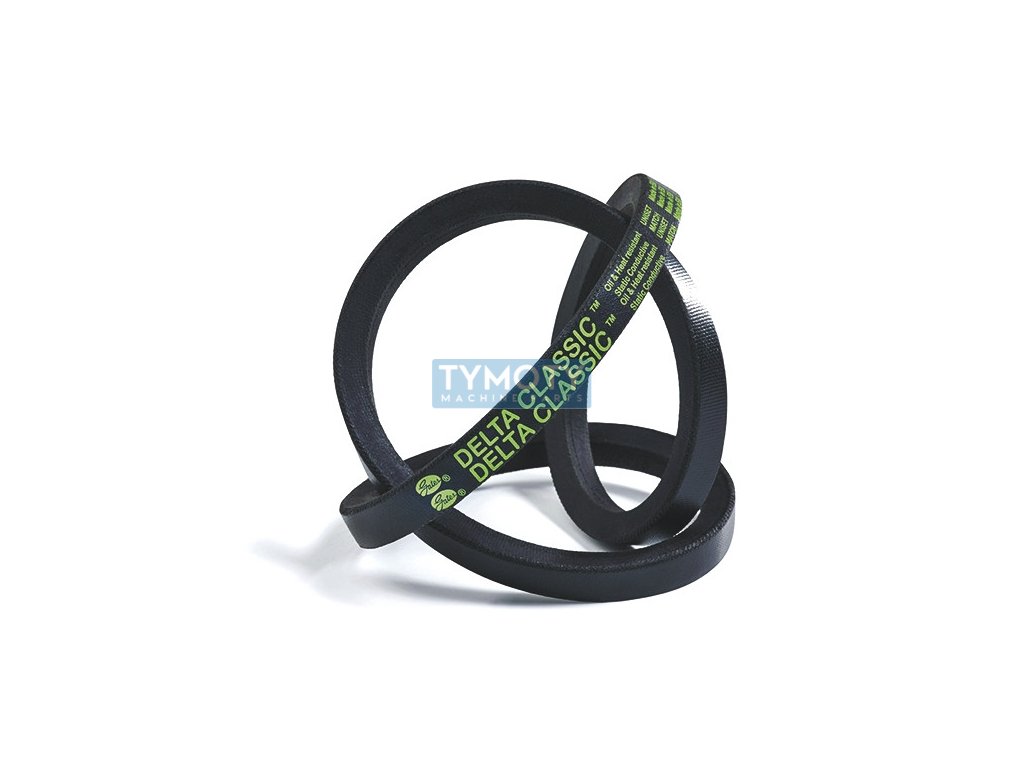

V-belt 13x1090 Li - A 1120 Lw (A43) Gates Delta Classic

Product detailed description

Gates Delta Classic V-belt with the designation 13x1090 Li - A 1120 Lw (A43) is a high-quality component designed for the transmission of mechanical energy in various industrial applications. This belt is made of SBR (styrene-butadiene rubber), which provides excellent wear resistance and flexibility in a wide temperature range from -30 °C to +60 °C.

The belt has a profile 13/A, which means that its width is 13 mm and its height is 8 mm. This profile complies with DIN 2215 and ISO 4184 standards, which guarantees compatibility with various types of pulleys and pulleys. The inner length of the belt (Li) is 1090 mm, the calculated length (Lw, Lp) is 1120 mm and the outer length (La) is 1140 mm. These dimensional parameters are crucial for the correct tension and functionality of the belt in drives.

The belt is coated, which increases its resistance to external influences and extends its service life. The profile angle is 40°, which is a standard angle for this type of belt, optimized for efficient power transmission and minimizing friction losses. The minimum diameter of the pulley on which this belt can be mounted is 90 mm, which is important for proper operation and preventing excessive wear.

The Gates Delta Classic V-belt is equipped with a PES (polyester) cord, which provides high strength and resistance to stretching, ensuring stable performance throughout the entire service life of the belt. This product is ideal for use in various mechanical systems where reliability and efficiency of energy transmission are required.
