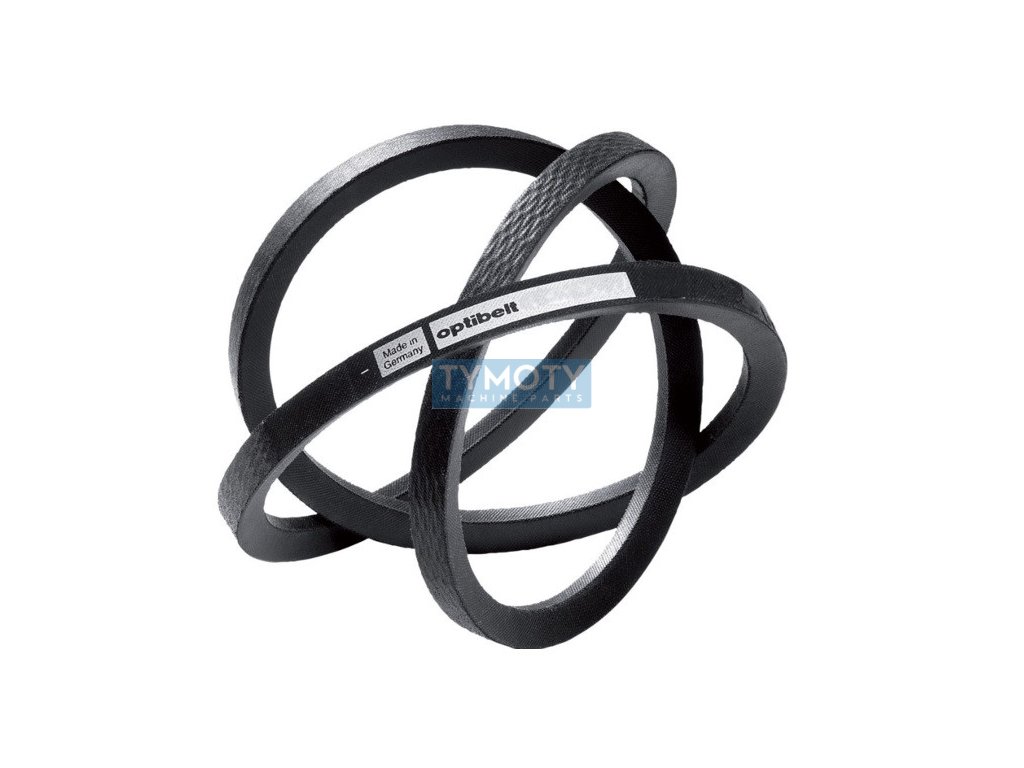

V-belt 10x515 X Li - Z 537 Lw optibelt VB
Code: 242334
Product detailed description
V-belt 10x515 Li - Z 537 Lw is (Z 20) a classic cut belt from the optibelt VB brand. The profile designation is \Z 20\. This V-belt has a width of 10 mm and a profile height of 8.5 mm. The inner sections Li = 515 mm, the calculated length Lw = 537 mm and the outer length La = 553 mm. The long service life of the 10 x 515 belt is ensured by the latest materials and very precise production on computer-controlled machines. The L=L or S=C system guarantees strict length tolerances for use in a set. - we are a reliable supplier of Rubena and Optibelt belts. Our own stock - tens of thousands of belts in stock for immediate dispatch.Additional parameters
| Category: | Belts > wedge simple > classic cut > ZX (10x6) |
|---|---|
| Weight: | 0.31 kg |
| EAN: | 4014486031638 |
| Calculation length Lw, Lp, mm: | 537 |
| Height H (mm): | 6 |
| Hole profile: | Z20 |
| Inner length Li (mm): | 515 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 50 |
| Outer length La (mm): | 553 |
| Product: | V-belt classic |
| Profile: | 10/Z |
| Width B (mm): | 10 |
| Číslo výrobce: | 1786629 |
| Značení: | 10 X 515 |
| Řada: | VB |
| Typ: | řezaný |
