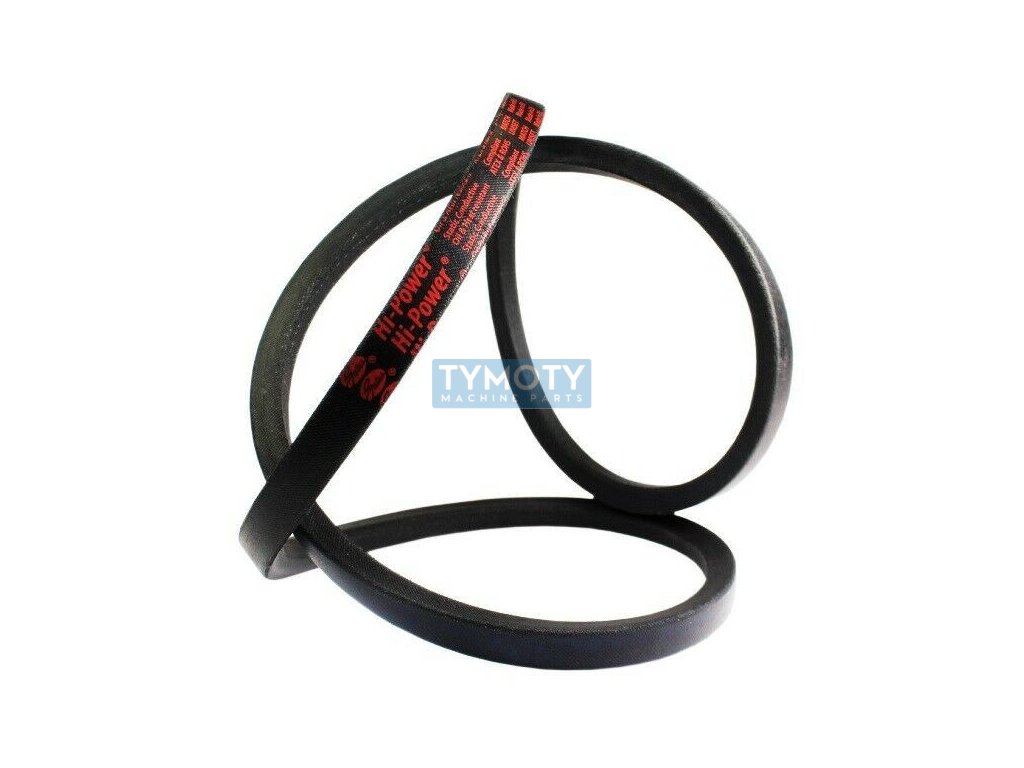

V-belt 10x1300 Li - Z 1320 Lw (Z51) Gates HI-Power
Code: 543354
Product detailed description
V-belt 10x1300 Li - Z 1320 Lw (Z51) Gates HI-Power is a high-quality component designed for the transmission of mechanical energy in various industrial applications. This belt is part of the HI-POWER series, which is known for its reliability and performance. The manufacturer GATES, a renowned leader in the field of drive systems, ensures that this product meets the highest standards of quality and precision.The belt has a 10/Z profile, which means that its width is 10 mm and its height is 6 mm. This profile is suitable for applications where compactness and efficient power transmission are important. The inner length of the belt is 1300 mm, the calculated length is 1320 mm and the outer length is 1336 mm. These dimensions comply with DIN 2215 and ISO 4184 standards, ensuring compatibility with various types of pulleys and systems.
The belt material is CR (chloroprene rubber), which provides excellent resistance to wear, oils and temperature changes. The belt is able to operate in a temperature range from -30 °C to +60 °C, which makes it suitable for a wide range of operating conditions. The cord type is PES (polyester), which provides high strength and resistance to stretching, contributing to the long life of the belt.
The belt is coated, which means that its surface is protected by a layer of material that increases its resistance to external influences and reduces the risk of damage. The profile angle is 40°, which is the standard angle for this type of belt, optimized for efficient power transmission and minimizing losses.
The minimum pulley diameter on which this belt can be mounted is 63 mm. This is an important parameter for the design of the drive system to ensure proper function and minimize the risk of premature wear.
The Gates HI-Power 10x1300 Li - Z 1320 Lw (Z51) V-belt is ideal for use in industrial equipment where high reliability and efficient power transmission are required. Its design features and material composition make it suitable for long-term use in harsh conditions.
Additional parameters
| Category: | Belts > wedge simple > classic breaded > Z (10x6) |
|---|---|
| Weight: | 0.091 kg |
| EAN: | 5412571049138 |
| Angle ( ° ): | 40 |
| Calculation length Lw, Lp, mm: | 1320 |
| Cord type: | PES |
| Country of origin: | PL |
| DIN standard: | 2215 |
| Height H (mm): | 6 |
| Inner length Li (mm): | 1300 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | CR |
| Maximum temperature °C: | +60 °C |
| Minimum diameter: | 63 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 1336 |
| Product: | V-belt classic |
| Profile: | 10/Z |
| Width B (mm): | 10 |
| Číslo výrobce: | 9001-10051 |
| Značení: | Z51 10X1320LP/1300LI HIPOWER |
| Řada: | HI-POWER |
| Typ: | obalovaný |
