Timing belt T5 815 25 Gates Synchro Power

Product detailed description

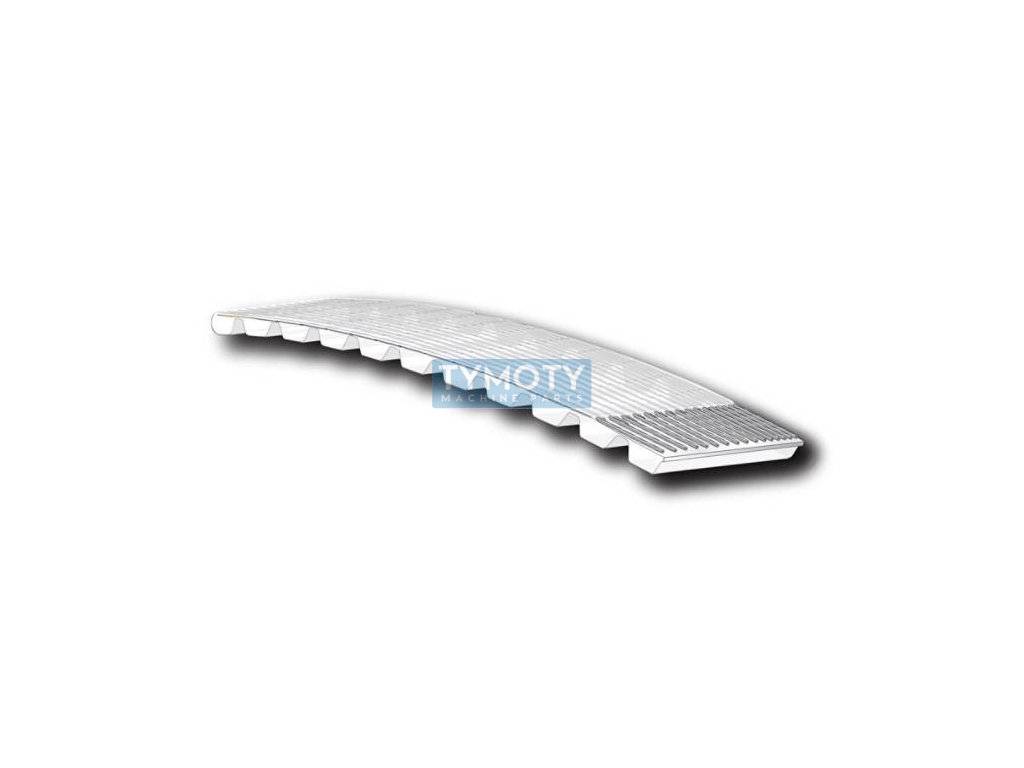

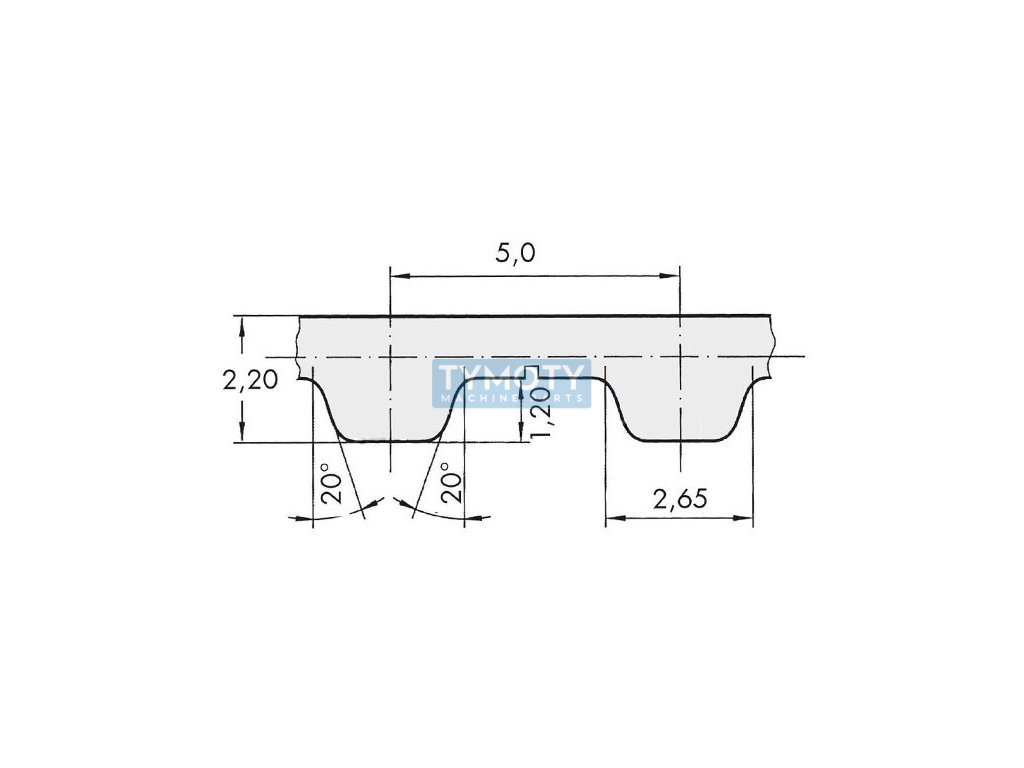

Timing belt T5 815 25 Gates Synchro Power is a high-performance polyurethane belt designed to transmit power and motion in various mechanical systems. This belt is manufactured by Gates and its type designation is T5-815-25. The T5 profile indicates that the belt has teeth with a tooth pitch of 5 mm and a height of 2.2 mm. The timing belt is 815 mm long and 6 mm wide. The belt width is not usually printed directly on the belt itself, so it is necessary to physically measure it. Due to belt wear, it is also advisable to slightly increase the measured value. During production, the belt is cut from a sleeve, which is a manufacturing unit, which allows the belt width to be adjusted arbitrarily according to the specific requirements of the application. The exact number of teeth is 163, which is information that will help us determine the length of the belt. This timing belt is part of a series with the trade name SYNCHRO POWER Sleeves. Gates is a renowned American belt manufacturer with a strong market position. Gates is known for its innovative products, high quality and a long history dating back to 1911.
