Timing belt T5 800 20 optibelt Alpha Power
Code: 255136
Product detailed description

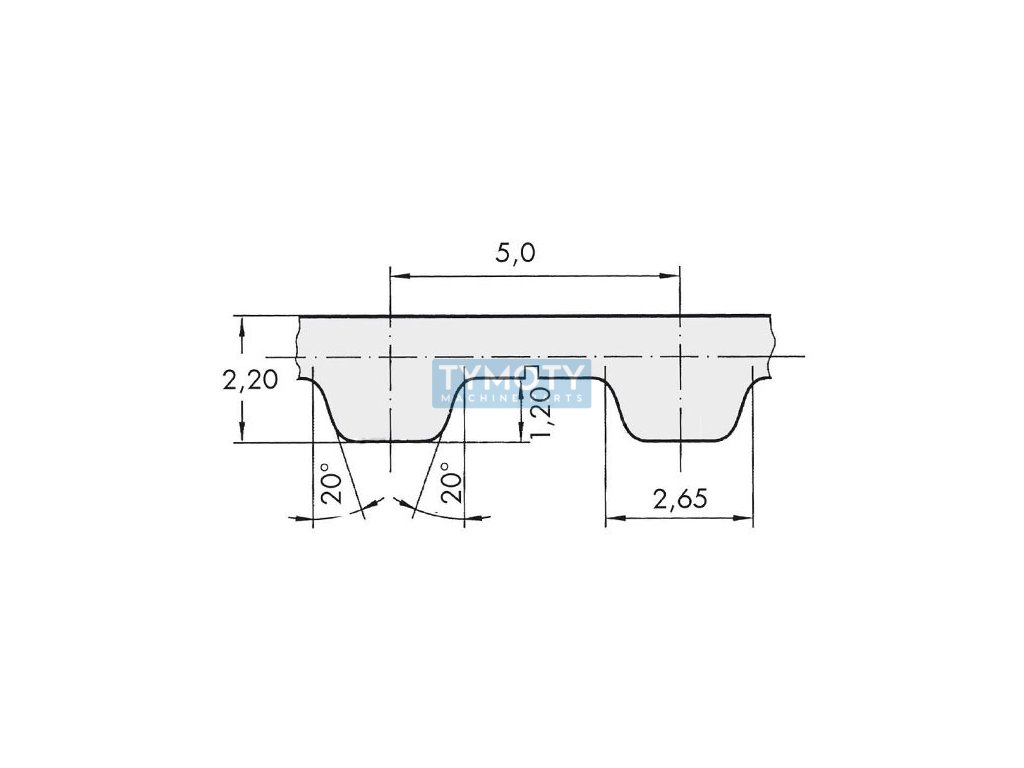

Timing belt T5 800 - 20 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 20 T5/800 AP. The T5 profile defines a tooth pitch of 5 mm and a height of 2.2 mm. The timing belt is 800 mm long and has a width of 20 mm. The width can be adjusted as desired. The exact number of teeth is 160 pcs, which will help us determine the length. Trade name ALPHA POWER. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > T5 (5x2.2) |
|---|---|
| Weight: | 0.04 kg |
| EAN: | 4014486371635 |
| Calculation length Lw, Lp, mm: | 800 |
| Height H (mm): | 2,2 |
| Height H1 (mm): | 1,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 160 |
| Product: | ALPHA POWER |
| Profile: | T5 |
| Spacing t (mm): | 5 |
| Width B (mm): | 20 |
| Číslo výrobce: | 1820458 |
| Řada: | 20 T5 / 800 AP |
| Typ: | ozubený řemen |
