Timing belt T5 420 10 optibelt Alpha Power
Code: 254902
Product detailed description

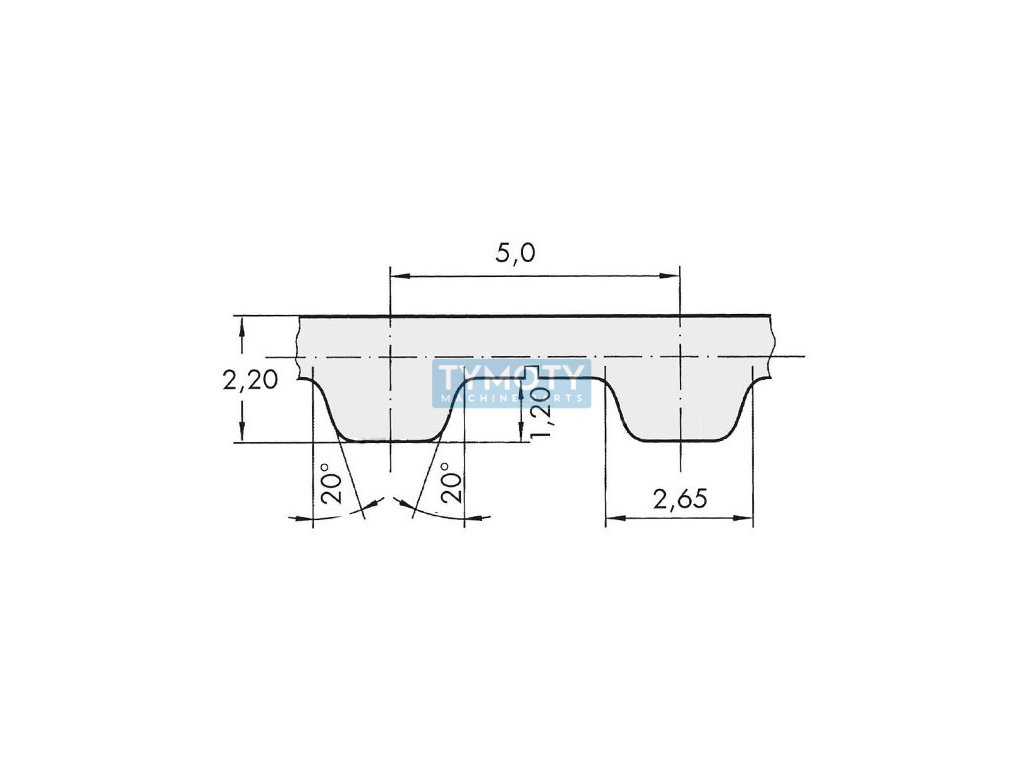

Timing belt T5 420 - 10 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 10 T5/420 AP. The T5 profile defines a tooth pitch of 5 mm and a height of 2.2 mm. The timing belt is 420 mm long and has a width of 10 mm. The width can be adjusted as desired. The exact number of teeth is 84 pcs, which will help us determine the length. Trade name ALPHA POWER. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > T5 (5x2.2) |
|---|---|
| Weight: | 0.01 kg |
| EAN: | 4014486368284 |
| Calculation length Lw, Lp, mm: | 420 |
| Height H (mm): | 2,2 |
| Height H1 (mm): | 1,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 84 |
| Product: | ALPHA POWER |
| Profile: | T5 |
| Spacing t (mm): | 5 |
| Width B (mm): | 10 |
| Číslo výrobce: | 1832862 |
| Řada: | 10 T5 / 420 AP |
| Typ: | ozubený řemen |
