Timing belt T5 295 12 optibelt Alpha Torque
Code: 256637
Product detailed description

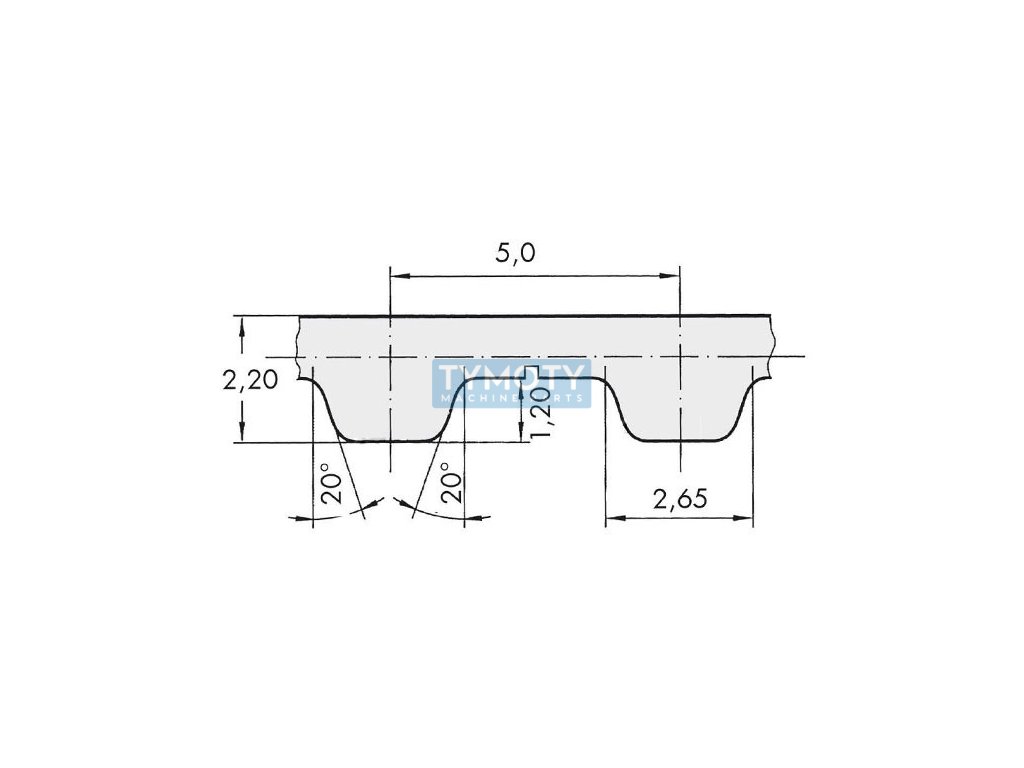

Timing belt T5 295 - 12 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 12 T5/295. The T5 profile defines a tooth pitch of 5 mm and a height of 2.2 mm. The timing belt is 295 mm long and has a width of 12 mm. The width can be adjusted as desired. The exact number of teeth is 59 pcs, which will help us determine the length. The trade name ALPHA TORQUE. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > T5 (5x2.2) |
|---|---|
| Weight: | 0.012 kg |
| EAN: | 4014486016543 |
| Calculation length Lw, Lp, mm: | 295 |
| Height H (mm): | 2,2 |
| Height H1 (mm): | 1,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 59 |
| Product: | ALPHA TORQUE |
| Profile: | T5 |
| Spacing t (mm): | 5 |
| Width B (mm): | 12 |
| Číslo výrobce: | 1896379 |
| Řada: | 12 T5 / 295 |
| Typ: | ozubený řemen |
