Timing belt T5 1000 20 optibelt Alpha Power
Code: 255185
Product detailed description

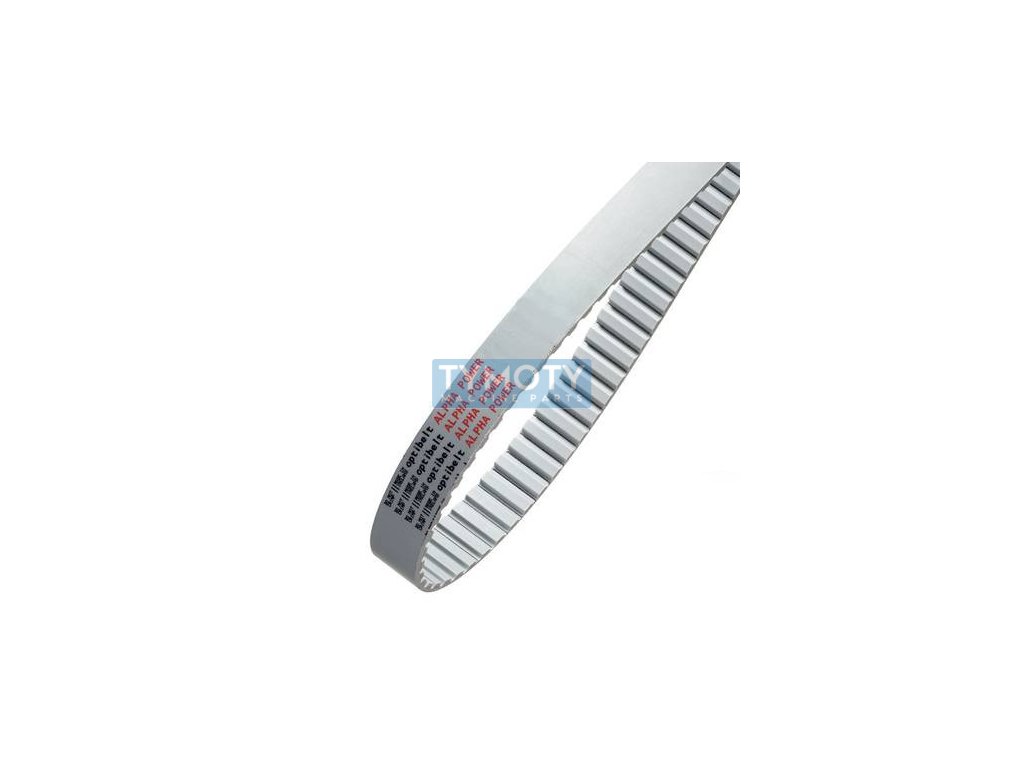

Timing belt T5 1000 - 20 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 20 T5/1000 AP. The T5 profile defines a tooth pitch of 5 mm and a height of 2.2 mm. The timing belt is 1000 mm long and has a width of 20 mm. The width can be adjusted as desired. The exact number of teeth is 200 pcs, which will help us determine the length. The trade name ALPHA POWER. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > T5 (5x2.2) |
|---|---|
| Weight: | 0.04 kg |
| EAN: | 4014486372441 |
| Calculation length Lw, Lp, mm: | 1000 |
| Height H (mm): | 2,2 |
| Height H1 (mm): | 1,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 200 |
| Product: | ALPHA POWER |
| Profile: | T5 |
| Spacing t (mm): | 5 |
| Width B (mm): | 20 |
| Číslo výrobce: | 1948581 |
| Řada: | 20 T5 / 1000 AP |
| Typ: | ozubený řemen |
