Timing belt T10 970 16 optibelt Alpha Torque
Code: 257329
Product detailed description

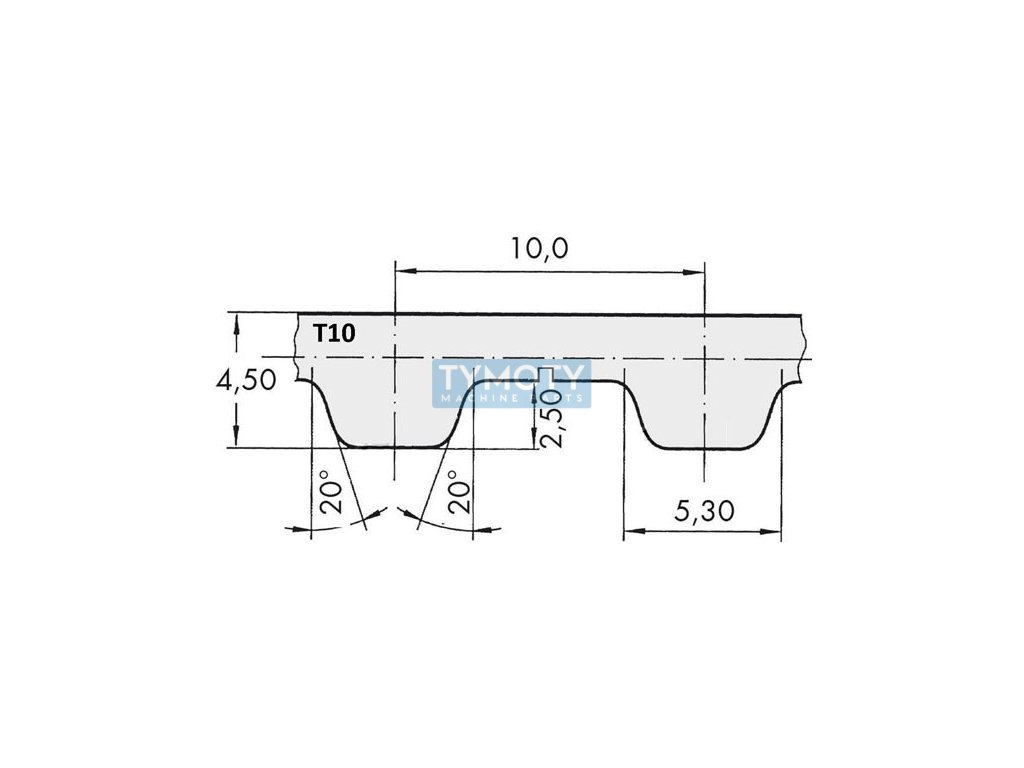

Timing belt T10 970 - 16 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 16 T10/970. The T10 profile defines a tooth pitch of 10 mm and a height of 4.5 mm. The timing belt is 970 mm long and has a width of 16 mm. The width can be adjusted as desired. The exact number of teeth is 97 pcs, which will help us determine the length. The trade name ALPHA TORQUE. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > T10 (10x4.5) |
|---|---|
| Weight: | 0.064 kg |
| EAN: | 4014486085860 |
| Calculation length Lw, Lp, mm: | 970 |
| Height H (mm): | 4,5 |
| Height H1 (mm): | 2,5 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 97 |
| Product: | ALPHA TORQUE |
| Profile: | T10 |
| Spacing t (mm): | 10 |
| Width B (mm): | 16 |
| Číslo výrobce: | 1838410 |
| Řada: | 16 T10 / 970 |
| Typ: | ozubený řemen |
