Timing belt T10 700 25 optibelt Alpha Torque
Code: 257226
Product detailed description

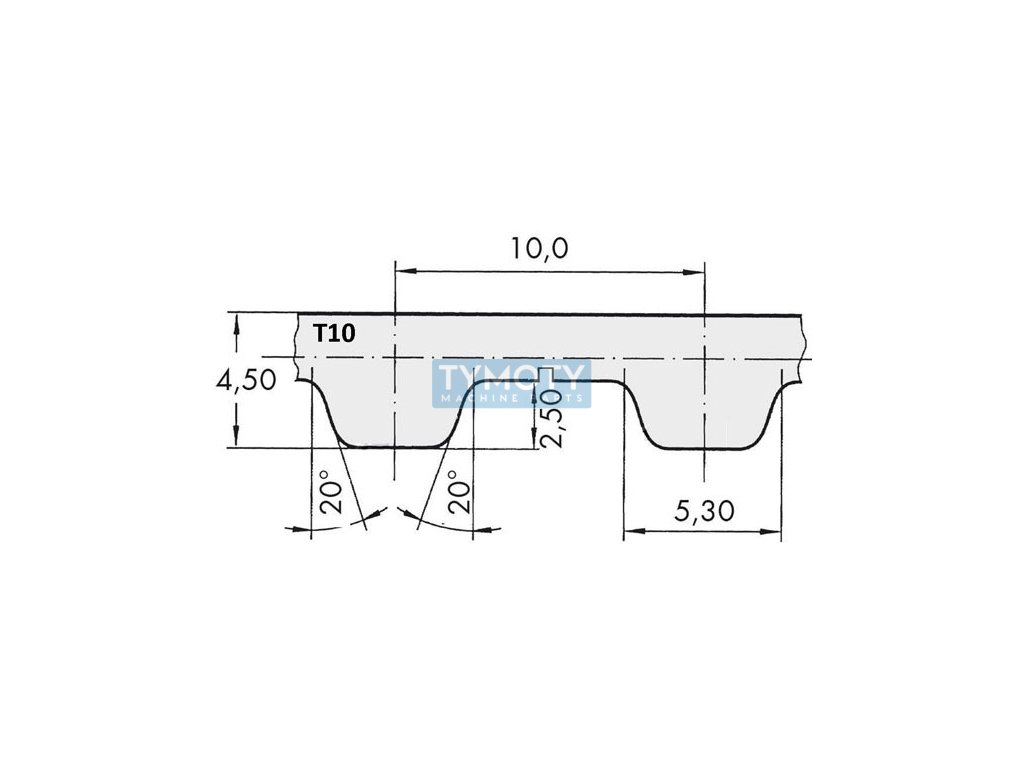

Timing belt T10 700 - 25 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 25 T10/700. The T10 profile defines a tooth pitch of 10 mm and a height of 4.5 mm. The timing belt is 700 mm long and has a width of 25 mm. The width can be adjusted as desired. The exact number of teeth is 70 pcs, which will help us determine the length. The trade name ALPHA TORQUE. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > T10 (10x4.5) |
|---|---|
| Weight: | 0.075 kg |
| EAN: | 4014486084689 |
| Calculation length Lw, Lp, mm: | 700 |
| Height H (mm): | 4,5 |
| Height H1 (mm): | 2,5 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 70 |
| Product: | ALPHA TORQUE |
| Profile: | T10 |
| Spacing t (mm): | 10 |
| Width B (mm): | 25 |
| Číslo výrobce: | 1889661 |
| Řada: | 25 T10 / 700 |
| Typ: | ozubený řemen |
