Timing belt DT5 450 20 optibelt Alpha Power
Code: 256140
Product detailed description

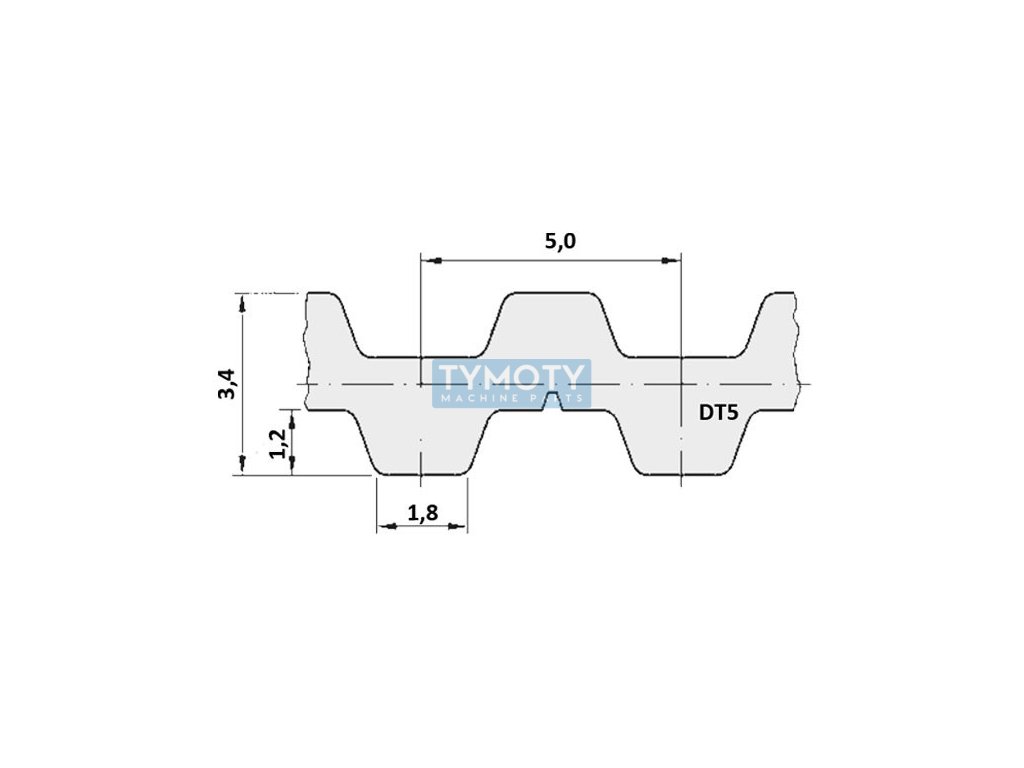

Timing belt DT5 450 - 20 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 20 DT5/450 AP. The DT5 profile defines a tooth pitch of 5 mm and a height of 3.4 mm. The timing belt is 450 mm long and has a width of 20 mm. The width can be adjusted as desired. The exact number of teeth is 90 pcs, which will help us determine the length. Trade name ALPHA POWER. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > DT5 (5x3.3) > width 20 mm |
|---|---|
| Weight: | 0.02 kg |
| EAN: | 4014486381047 |
| Calculation length Lw, Lp, mm: | 450 |
| Height H (mm): | 3,4 |
| Height H1 (mm): | 1,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 90 |
| Product: | ALPHA POWER |
| Profile: | DT5 |
| Spacing t (mm): | 5 |
| Width B (mm): | 20 |
| Číslo výrobce: | 1910127 |
| Řada: | 20 DT5 / 450 AP |
| Typ: | ozubený řemen oboustranný |
