Timing belt AT5 375 16 optibelt Alpha Power
Code: 255744
Product detailed description

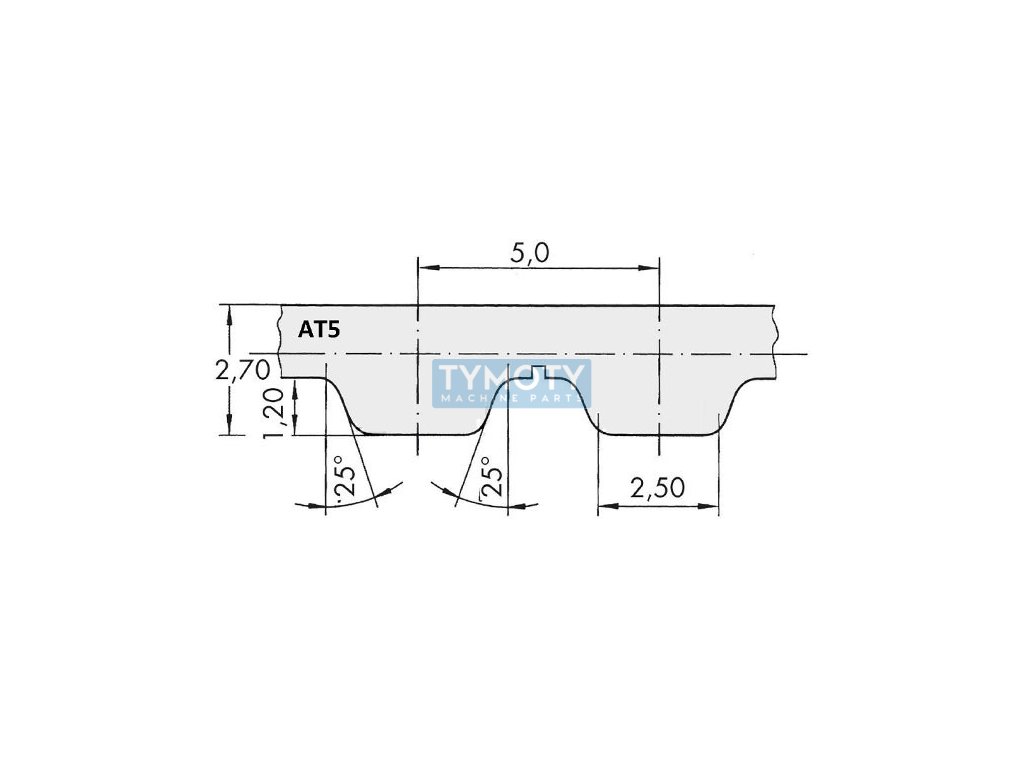

Timing belt AT5 375 - 16 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 16 AT5/375 AP. The AT5 profile defines a tooth pitch of 5 mm and a height of 2.7 mm. The timing belt is 375 mm long and has a width of 16 mm. The width can be adjusted as desired. The exact number of teeth is 75 pcs, which will help us determine the length. Trade name ALPHA POWER. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > AT5 (5x2.7) |
|---|---|
| Weight: | 0.016 kg |
| EAN: | 4014486373783 |
| Calculation length Lw, Lp, mm: | 375 |
| Height H (mm): | 2,7 |
| Height H1 (mm): | 1,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 75 |
| Product: | ALPHA POWER |
| Profile: | AT5 |
| Spacing t (mm): | 5 |
| Width B (mm): | 16 |
| Číslo výrobce: | 1845400 |
| Řada: | 16 AT5 / 375 AP |
| Typ: | ozubený řemen |
