Timing belt AT10 530 50 optibelt Alpha Torque
Code: 257753
Product detailed description

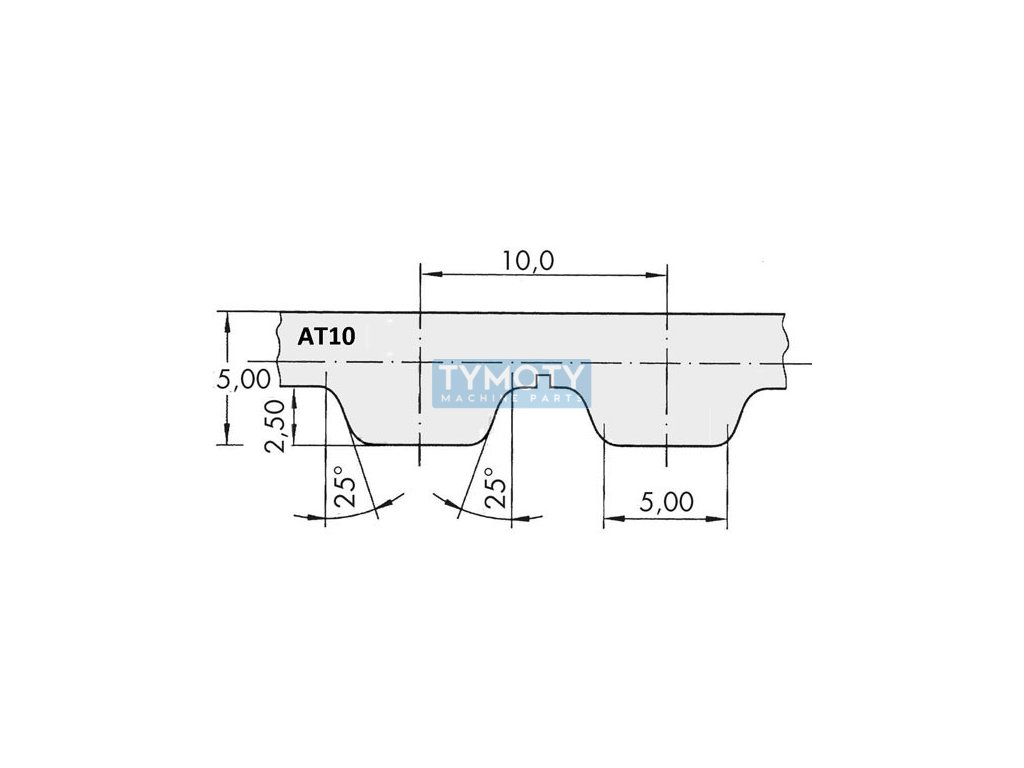

Timing belt AT10 530 - 50 mm is a high-performance polyurethane belt. The manufacturer's type designation optibelt is 50 AT10/530. The AT10 profile defines a tooth pitch of 10 mm and a height of 5 mm. The timing belt is 530 mm long and has a width of 50 mm. The width can be adjusted as desired. The exact number of teeth is 53 pcs, which will help us determine the length. The trade name ALPHA TORQUE. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > AT10 (10x4.5) > width 50 mm |
|---|---|
| Weight: | 0.15 kg |
| EAN: | 4014486139112 |
| Calculation length Lw, Lp, mm: | 530 |
| Height H (mm): | 5 |
| Height H1 (mm): | 2,5 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 53 |
| Product: | ALPHA TORQUE |
| Profile: | AT10 |
| Spacing t (mm): | 10 |
| Width B (mm): | 50 |
| Číslo výrobce: | 1802665 |
| Řada: | 50 AT10 / 530 |
| Typ: | ozubený řemen |
