Timing belt 920 8M 20 optibelt Omega
Code: 252148
Product detailed description

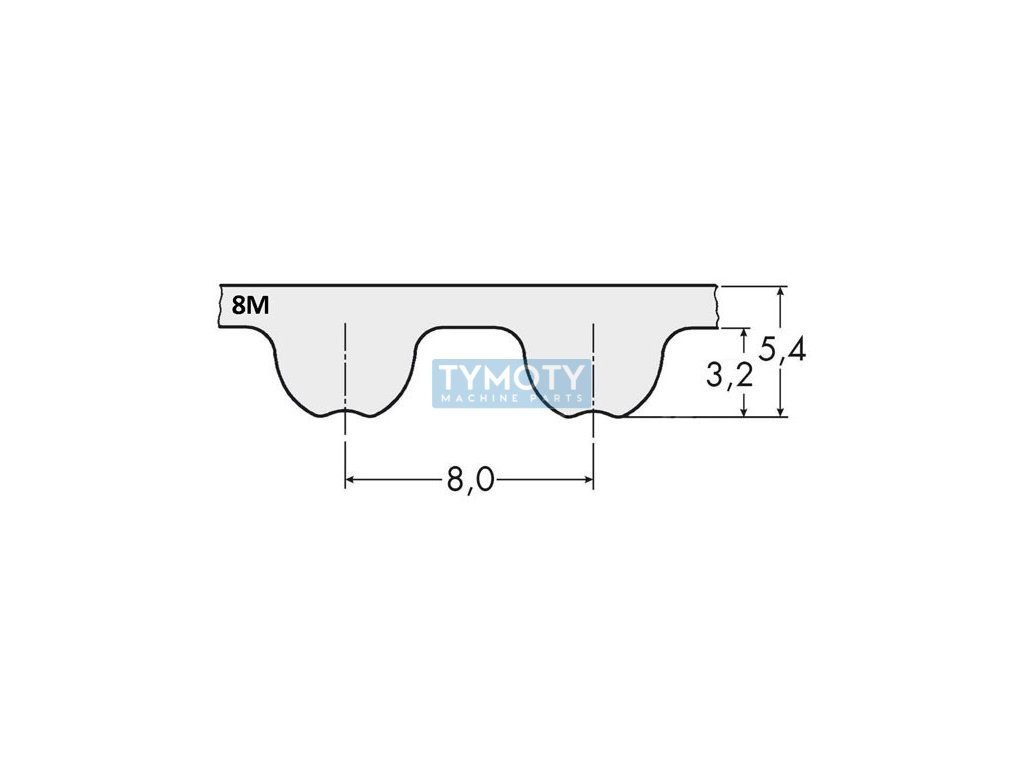

Timing belt 8M 920 - 20 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 920 8M 20. The 8M profile defines a tooth pitch of 8 mm and a height of 5.4 mm. The timing belt is 920 mm long and has a width of 20 mm. The width can be adjusted as desired. The exact number of teeth is 115 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 8M (8x6) > width 20 mm |
|---|---|
| Weight: | 0.12 kg |
| EAN: | 4014486054507 |
| Calculation length Lw, Lp, mm: | 920 |
| Height H (mm): | 5,4 |
| Height H1 (mm): | 3,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 115 |
| Product: | OMEGA |
| Profile: | 8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 20 |
| Číslo výrobce: | 1518476 |
| Značení: | 920 8M 20 |
| Řada: | 920-RPP8-20 |
| Typ: | ozubený řemen |
