Timing belt 680 8M 30 optibelt Omega
Code: 252093
Product detailed description

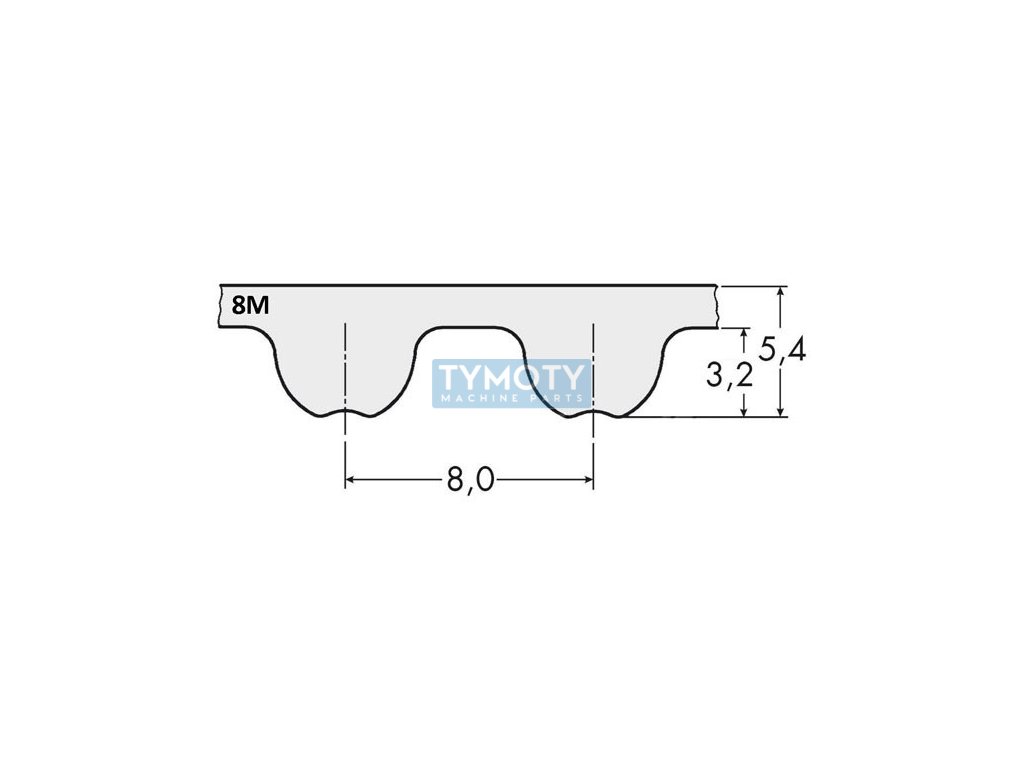

Timing belt 8M 680 - 30 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 680 8M 30. The 8M profile defines a tooth pitch of 8 mm and a height of 5.4 mm. The timing belt is 680 mm long and has a width of 30 mm. The width can be adjusted as desired. The exact number of teeth is 85 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 8M (8x6) > width 30 mm |
|---|---|
| Weight: | 0.12 kg |
| EAN: | 4014486053616 |
| Calculation length Lw, Lp, mm: | 680 |
| Height H (mm): | 5,4 |
| Height H1 (mm): | 3,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 85 |
| Product: | OMEGA |
| Profile: | 8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 30 |
| Číslo výrobce: | 1639498 |
| Značení: | 680 8M 30 |
| Řada: | 680-RPP8-30 |
| Typ: | ozubený řemen |
