Timing belt 600 D5M 15 optibelt Omega HTD
Code: 252495
Product detailed description

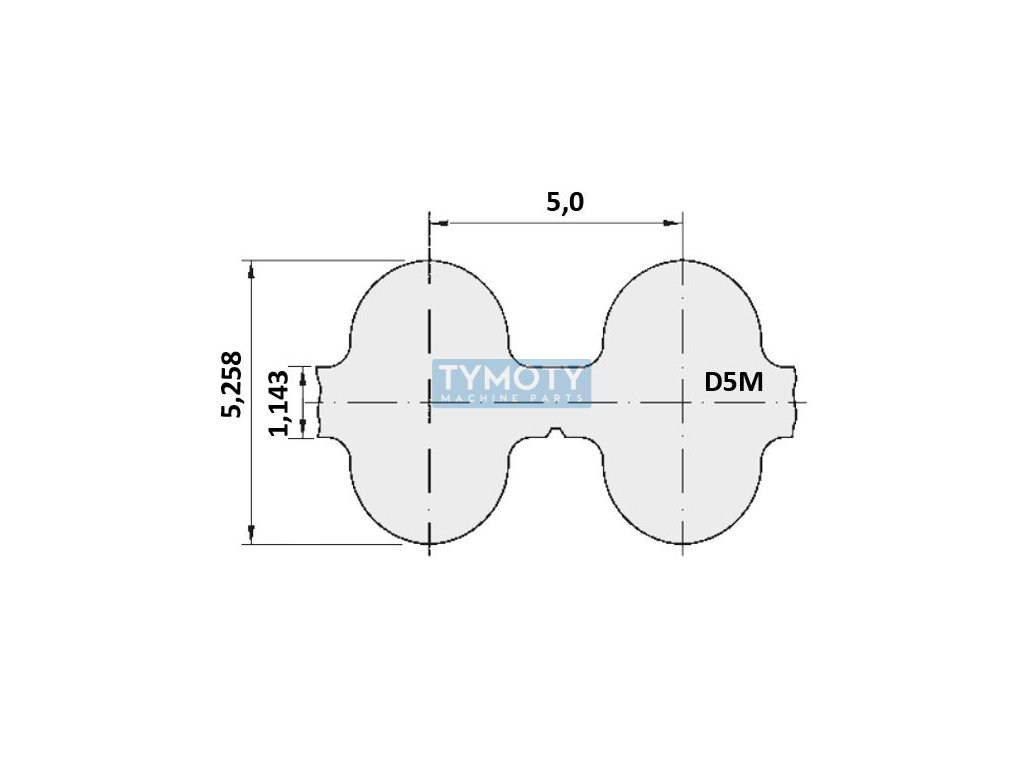

Timing belt D5M 600 - 15 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 600 D5M 15. The D5M profile defines a tooth pitch of 5 mm and a height of 5.258 mm. The timing belt is 600 mm long and has a width of 15 mm. The width can be adjusted as desired. The exact number of teeth is 120 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > D5M (5x5.3) |
|---|---|
| Weight: | 0.015 kg |
| EAN: | 4014486067767 |
| Calculation length Lw, Lp, mm: | 600 |
| Height H (mm): | 5,258 |
| Height H1 (mm): | 1,143 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 120 |
| Product: | OMEGA |
| Profile: | D5M |
| Spacing t (mm): | 5 |
| Width B (mm): | 15 |
| Číslo výrobce: | 1922989 |
| Značení: | 600 D5M 15 |
| Řada: | 600 D5M 15 |
| Typ: | ozubený řemen oboustranný |
