Timing belt 576 8M 50 optibelt Omega
Code: 252062
Product detailed description

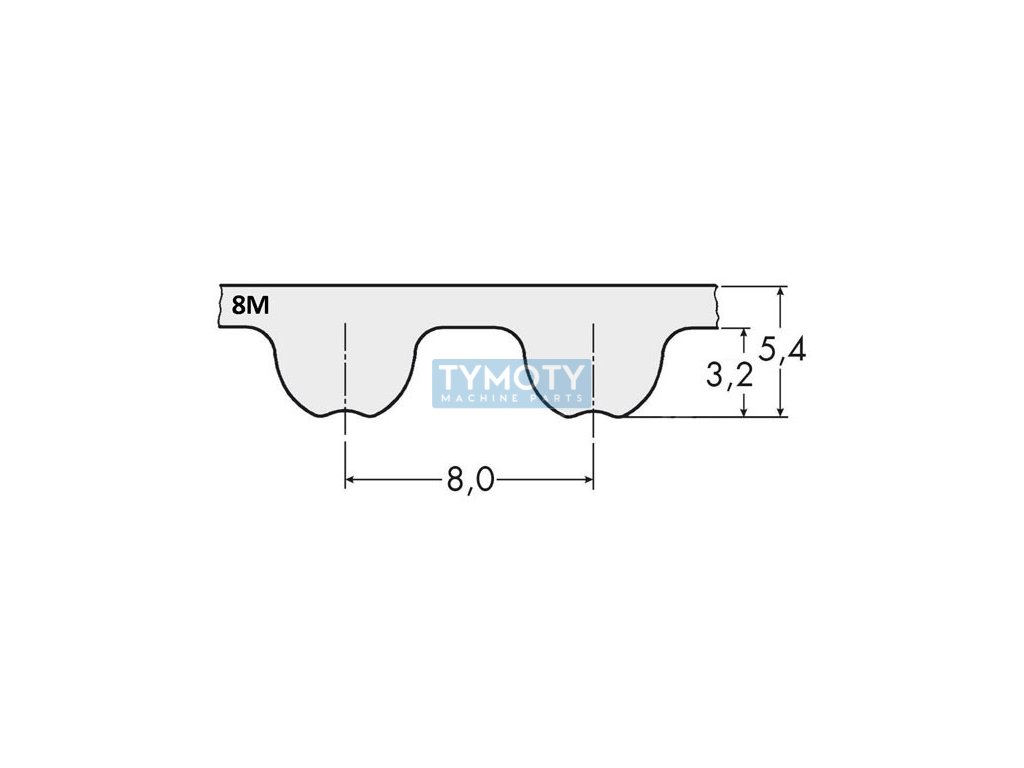

Timing belt 8M 576 - 50 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 576 8M 50. The 8M profile defines a tooth pitch of 8 mm and a height of 5.4 mm. The timing belt is 576 mm long and has a width of 50 mm. The width can be adjusted as desired. The exact number of teeth is 72 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 8M (8x6) > width 50 mm |
|---|---|
| Weight: | 0.15 kg |
| EAN: | 4014486053159 |
| Calculation length Lw, Lp, mm: | 576 |
| Height H (mm): | 5,4 |
| Height H1 (mm): | 3,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 72 |
| Product: | OMEGA |
| Profile: | 8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 50 |
| Číslo výrobce: | 1645591 |
| Značení: | 576 8M 50 |
| Řada: | 576-RPP8-50 |
| Typ: | ozubený řemen |
